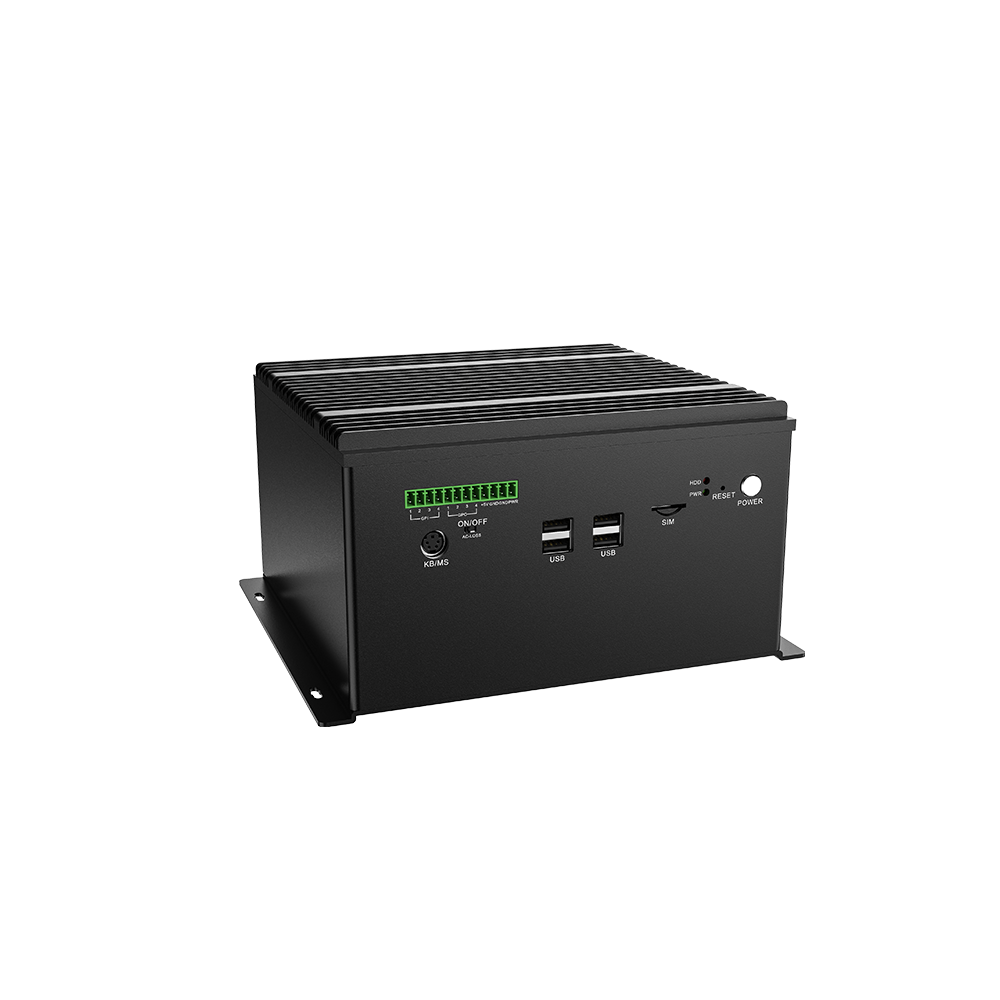

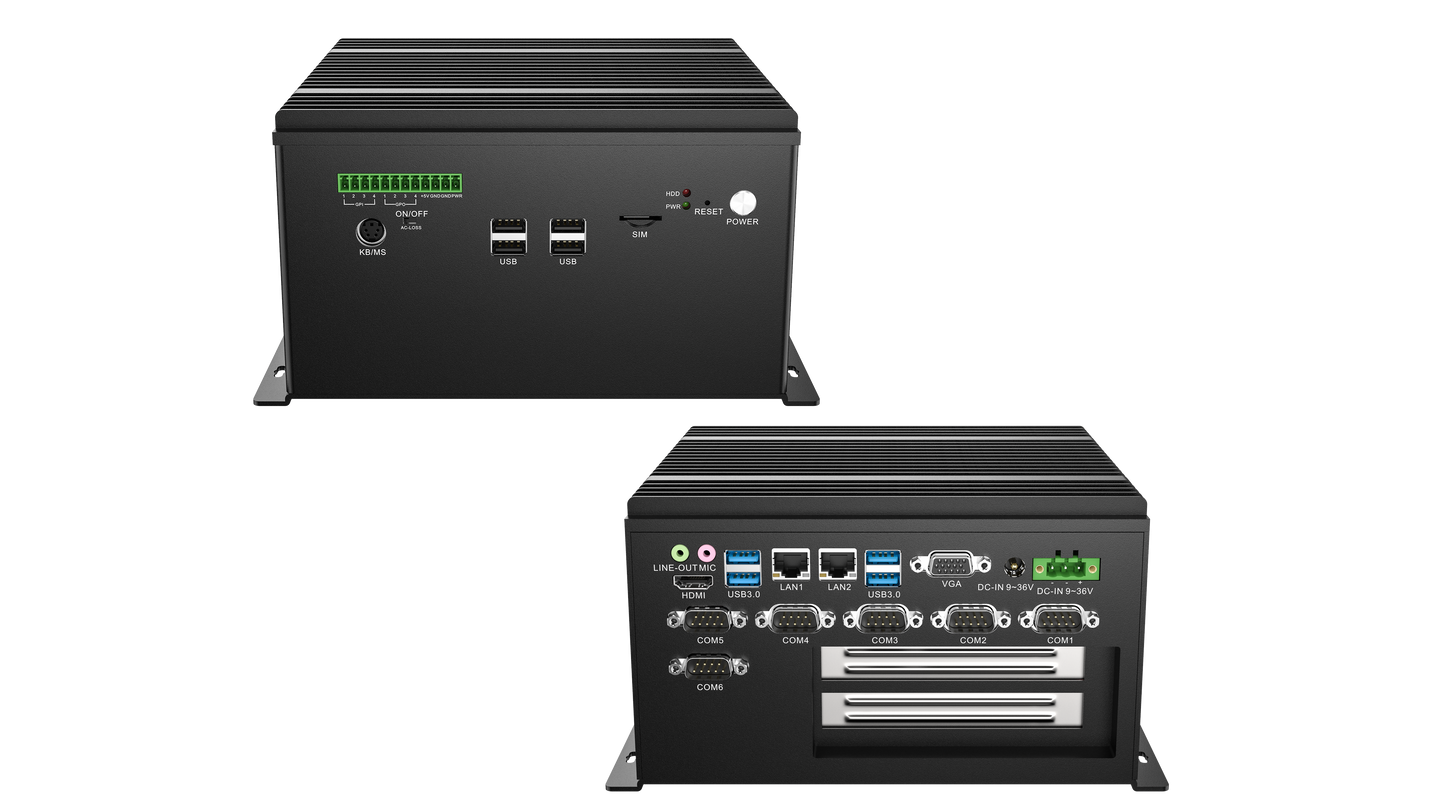

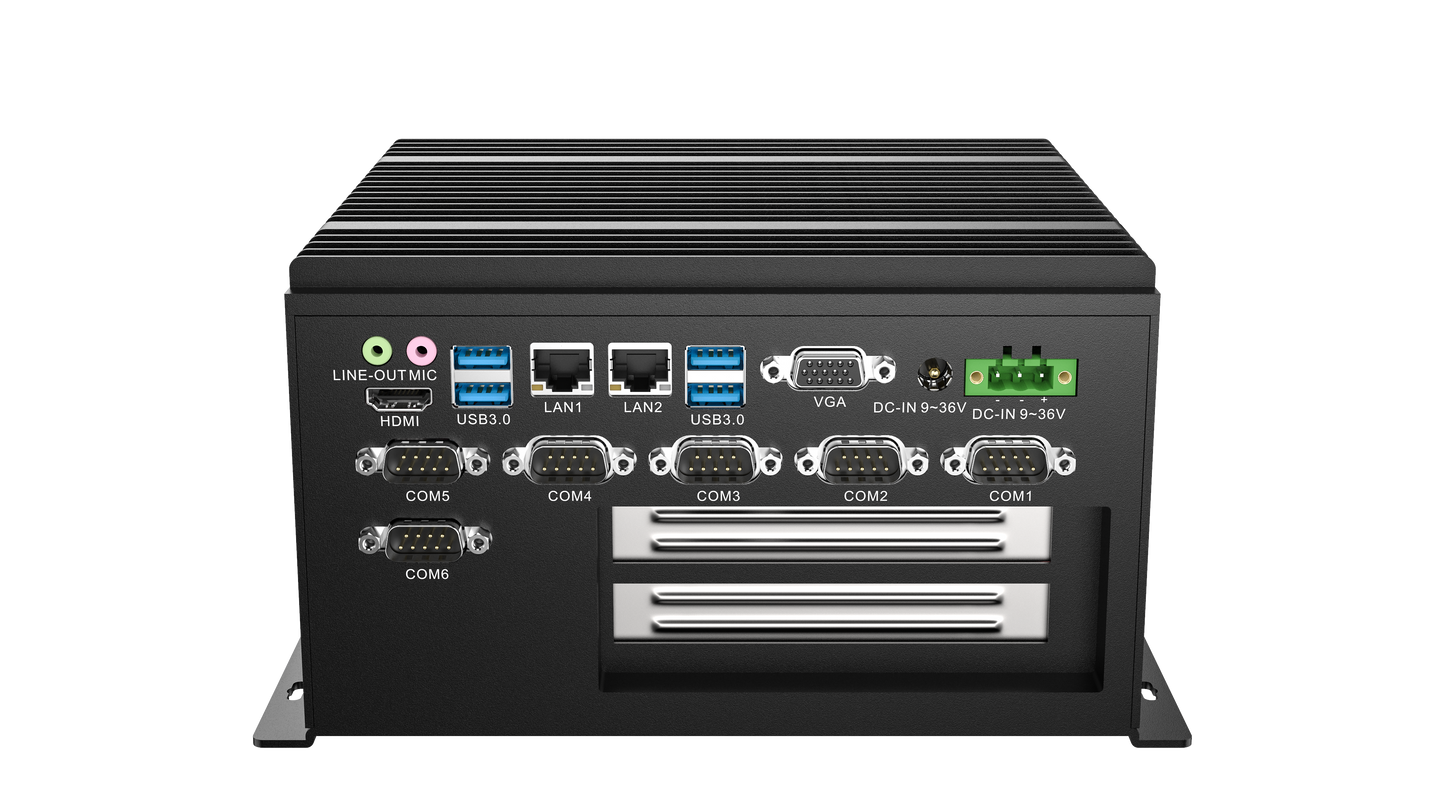

Darveen MBC-7102 Intel Core I7 Fanless Industrial Embedded Box Computer
MBC-7102 Intel Core I5/I7 Fanless Industrial Computer with 2xPCIe Slots
- Intel Core I5/Core I7 CPU
● 6 x RS-232(4 x RS-232/485) with Isolation
● 2 x GbE, 8 x USB, VGA, HDMI
● 1 x 2.5” SATA HDD / SSD, 1 x mSATA
● 1 x Mini PCIe, 2 x PCIe
● 9~36 V DC Power Input
MBC-7102 Fanless Industrial Computer: the cableless design of CPU board + child board can effectively guarantee the anti-vibration and anti-interference ability of the whole machine. Meanwhile, it provides a variety of interface functions, including serial port (with isolation), network port, GPIO, WIFI, 4G-LTE.
▌Specifications
|
Processor |
Intel Core™I5-6360U up to 3.1 GHz |
|
Memory |
2 x DDR4 2133 MHz SO-DIMM up to 32GB(I5-6360U) |
|
Graphic |
By CPU |
|
Operating System |
Windows 7/8/10, WS7E, Ubuntu |
|
Hard Disk |
1 x 2.5″ SATA HDD / SSD |
|
SSD |
1 x Msata |
|
COM |
6 x RS-232(4 x RS-232/485 with Isolation) |
|
USB |
8x USB2.0/USB3.0 |
|
LAN |
2 x Intel i211 for GbE |
|
Video |
1 x VGA, 1 x HDMI |
|
Audio |
Line Out，Mic |
|
GPIO |
4 x IN, 4 x OUT |
|
PS/2 |
1 x PS/2 Keyboard Mouse |
|
Remote Switch |
1 x 2Pin Remote SW |
|
PCI/PCIe |
1 x PCIe X1, 1 x PCIe X4 |
|
Mini PCIe |
1 x full-size mini PCIe |
|
SIM |
1 x SIM |
|
USB KEY |
NA |
|
Antenna hole |
2 x SMA-type |
|
Power Input |
DC 9~36V |
|
Certifications |
CE, FCC Class A |
|
Operating Temp |
-10 ~ 60℃(SSD) |
|
Storage Temp |
-40 ~ 85℃ |
|
Relative Humidity |
10 ~ 95% |
|
Housing |
Aluminum alloy |
|
Mounting |
Wall-mount |
|
Dimension (W x D x H) |
223x189x117mm |
|
Weight |
2.5kg |
For more information about Darveen MBC-7102 Fanless Industrial Embedded Box Computer, please contact us.
