CAM500A - 5MP 1080p Camera Module with OV5640 Chip

Regular price $19.90
Regular price Sale price $19.90
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

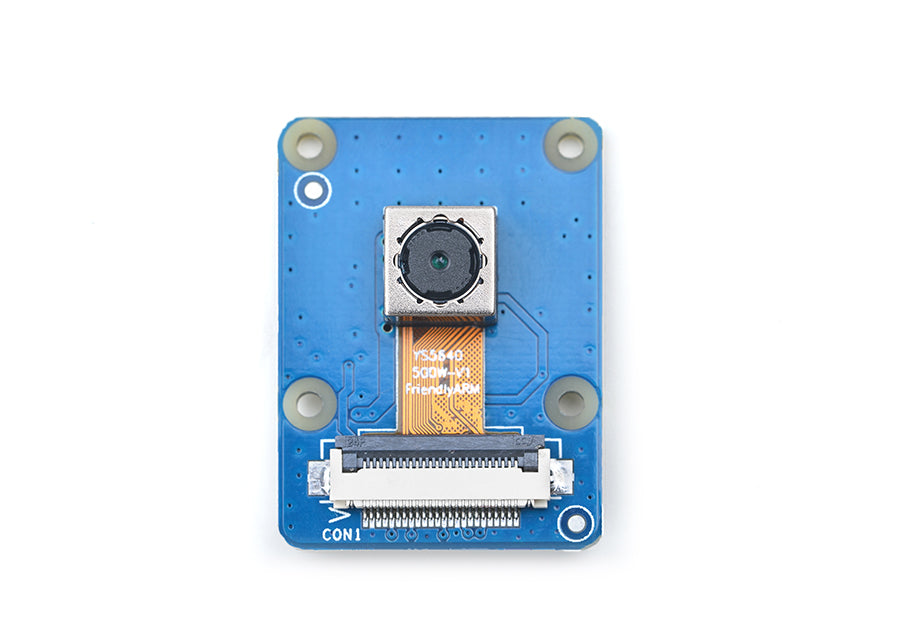

The CAM500A is a camera module using Omni Vision's 1/4" QSXGA CMOS OV5640 chipset. It has a DVP parallel interface. It supports up to 5M-pixel (2592 x 1944) image sizes and 720P©30fps video recording. It supports various auto functions like AFC, AWB, AEC and etc.

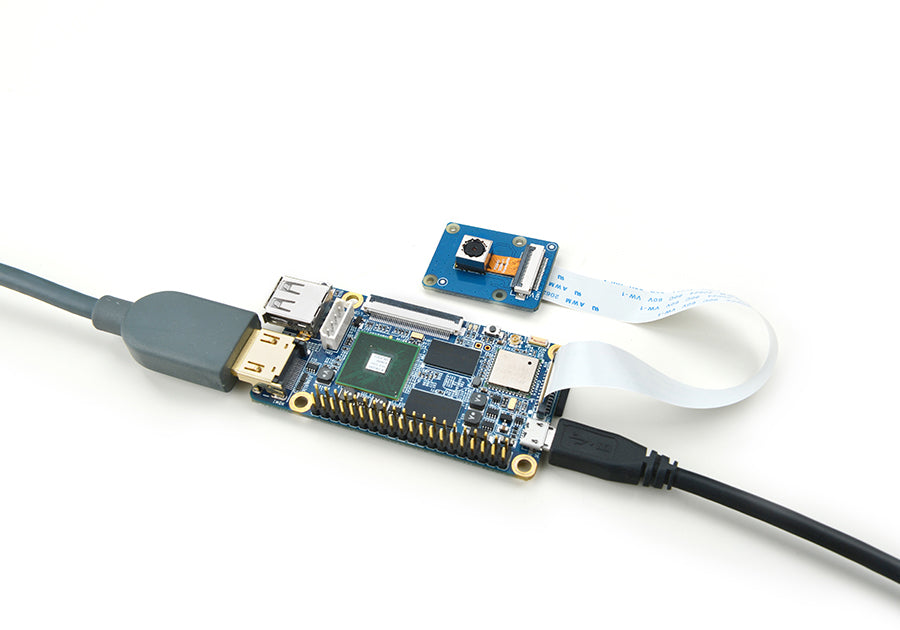

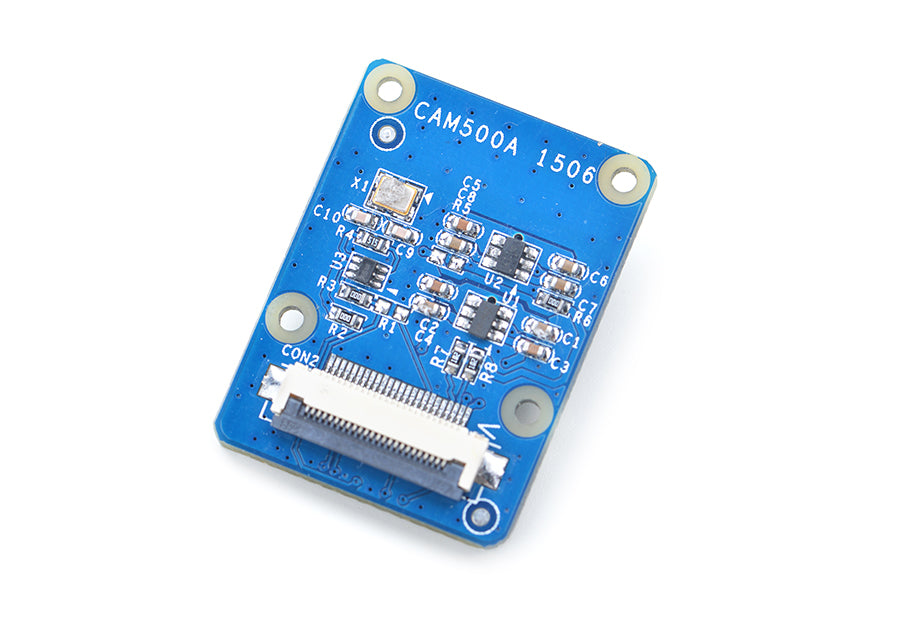

The CAM500A camera's focal length is 2.7mm. Its F number is 2.8. Its view angle is 66° . The module' s dimension is 33.7 x 25 mm. It has four 02.00mm mounting holes. It is powered by 3.3V. It can be connected to a master device via a 24pin FPC cable.

These features make it popular in various applications such as surveillance systems, smart vehicles, drones and etc.



OV5640 Features
Array Size 2592 x 1944
Power Supply 3.3V ( only this module )
Power
Requirements
Active : TBD Standby : TBD
Temperature
Range
Operating : -30°to 70°
Stable Image : no 50°
Output Format 8410 bit RGB RAW output
Lens Size VI
Input Clock Frequency 6-27 Mhz
Max Image
Transfer Rate
•QSXGA(2596 x 1944):15fps
•1080p:30fps
•1280 x 960: 45fps
•720p: 60fps
•VGA(640 x 480): 90fps
•QVGA(320 x 240): 120fps
Supported
Output Formats
•RAW RGB
•RGB565/555/444
•CCIR656,
•YUV422/420
•YCbCr422
•and compression
Sensitivity TBD
Shutter Rolling shutter / frame exposure
Maximum Exposure
Interval
1964 x tROW
Pixel Size 1.4 pm x 1.4 pm
Dark Current TBD
Well Capacity TBD
Fixed Pattern Noise
(FPN)
TBD
Image Area 3673.6 pm x 27384 pm
‘ Package Dimension 5985 pm x 5835 pm

Specifications
