BPI-OLED Display Module (BPI-A-015)

Regular price $8.30
Regular price Sale price $8.30
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

Banana Pi 0.96’ OLED display module is designed by 52pi which is made by 128x64 yellow and blue OLED pixels , diagonal is only 0.96 inch . The controller is SSD1306, communicates via 4-wire SPI, the display have its own backlight, no backlight LED is required ,This reduces the power required to run the OLED and is why the display has such high contrast , extremely wide viewing angle and extremely operating temperature
Product Overview
Mechanical specifications
  1. Outline Drawing: 370x300(mm)
  2. Number of pixels: 128x64
  3. Panel size:26.70x19.26x1.45(mm)
  4. Active area: 21.74x10.864(mm)
  5. Pixel pitch 0.17x0.17(mm)
  6. Pixel size: 0.154x0.154(mm)
  7. Weight: 15g
Active area & pixel construction
Product Features
  1. Ultra low power supply
  2. Maximum current 100uA
  3. Keep up current 12.25uA
  4. Hardware keep up display
  5. 3.3V work voltage ,([MIN 1.6V] ,[MAX:3.6V])
  6. Internal DC/DC voltage converter
  7. SPI driver support , AT 64MHz[TYP] 125MHZ[OB]
  8. FP frequency: 64fps[TYP] 368fps[OB]
Hardware conection
Schematic diagram
Method Of Use

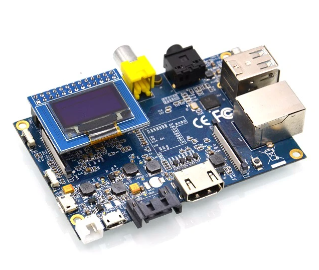

Directly mounted on Banana pi BPI-M1 BPI-M1+ BPI-M2 BPI-R1
Test OLED module on BPI-M3
image: BPI-M3 Ubuntu15.10 (Kernel3.4)
Version: 1.0 HDMI
Step 1: Version V1.0 doesn't include SPI Function. The boot.fex should be recompiled. Open SPI function
( )
Version V2.0 is going to support the spi-function by default.
Step 2 : Copy smaple code to OLED.c file
$ sudo vi OLED.c
Step 3 : Compile OLED.c
$ gcc -o OLED OLED.c -l wiringPi
Step 4 : Run OLED
$ sudo ./OLED
