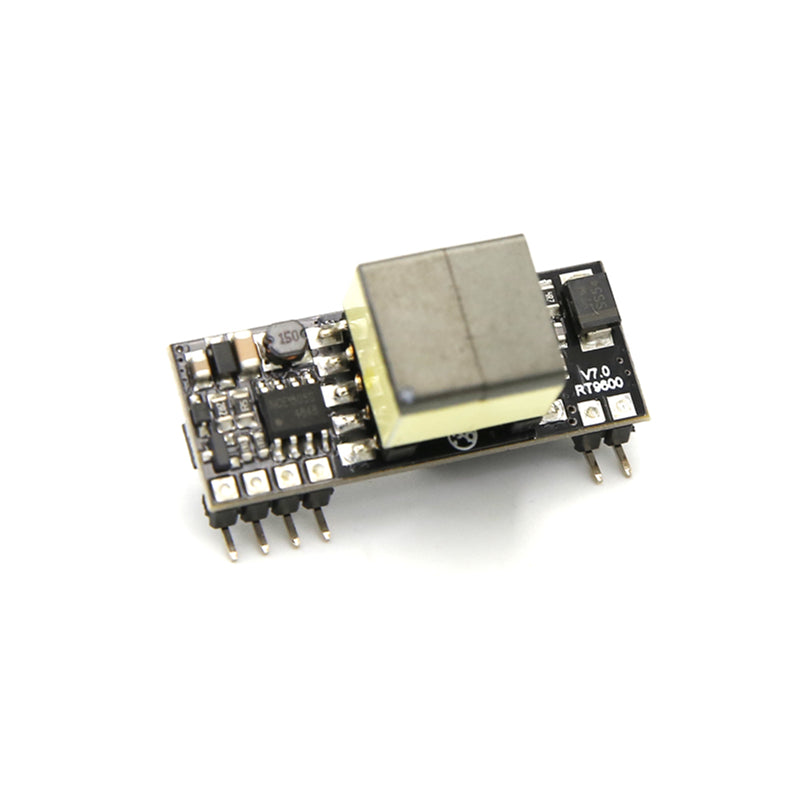

BPI-9600 POE Module For BPI-P2 Zero
-
The BPI-9600 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard. The BPI-9600 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The BPI-9600 provides a Class 0 signature.
The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.
Features
- IEEE802.3af compliant
- Input voltage range 36V to 57V
- Integral high efficiency DC/DC converter.
- Low output ripple and noise
- High performance with low price
- Short-circuit protection
- Adjustable Output
- Optional multi-voltage output 3.3V 5V 12V 24V
- Transformer isolation ,1500V isolation (input to output)
- Easy to use, with a minimum number of external components.
Applications
- IoT gateway
- IP Cameras
- Wireless access point
- Security and alarm systems
- VOIP telephone
- Point of sale network terminal equipment
PBI-9600 PoE Hardware
Module size
Product Selector
BPI-9600 PoE module Part Number Nominal Output Voltage Maximum Output Power Marking Package BPI-9600-3.3V 3.3V 6.6W 3.3V SIL BPI-9600 -5V 5V 10W 5V SIL BPI-9600 -12V 12V 12W 12V SIL BPI-9600 -24V 24V 12W 24V SIL - At 25°C with VIN = 48V
Pin Description
BPI-9600 PoE module Pin # Name Description 1 VA1 RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive. 2 VA2 TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive. 3 VB1 Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive. 4 VB2 Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive. 5 -VDC DC Return. This pin is the return path for the +VDC output. 6 +VDC DC Output. This pin provides the regulated output from the DC/DC converter. Absolute Maximum Ratings
BPI-9600 PoE module Parameter Symbol Min Max Units 1 DC Supply Voltage VCC -0.3 60 V 2 DC Supply Voltage Surge for 1ms VSURGE -0.6 80 V 3 Storage Temperature TS -40 100 OC Note 1: Exceeding the above ratings may cause permanent damage to the product. Functional operation under these conditions is not implied. Maximum ratings assume free airflow.
Recommended Operating Conditions
BPI-9600 PoE module Parameter Symbol Min Typ Max Units Units 1 Input Supply Voltage1 VIN 36 48 57 V V 2 Under Voltage Lockout VLOCK 30 36 V V 3 Operating Temperature2 TOP -20 25 70 Ta / OC BPI-9600 Note
- 1: With minimum load
- 2: See Section Operating Temperature Range
-
- Extended use close to, or at the maximum operating temperature can reduce the life time of the device.
DC Electrical Characteristics
Note
- 1: Typical figures are at 25°C with a nominal 48V supply and are for design aid only. Not Guaranteed
- 2: The output ripple and noise can be reduced with an external filter, see application note.
- 3: Continuous short circuit duration is applicable at 25'C ambient temperature in free air. At higher temperatures or with restricted
-
- airflow (e.g. in a sealed enclosure) the duration will need to be limited to avoid overheating.
Typical Connection Diagram
