- Allwinner A40i/R40/V40 Quad Core ARM Cortex A7 CPU
- 2GB DDR3 SDRAM.
- 8GB eMMC flahs onboard.
- WiFi (AP6212) & Bluetooth onboard.
- SATA Interface.
- 2*USB 2.0
- MIPI DSI ingerface
- CSI camera interface
Also being a member of the Banana Pi family, the M2 Ultra is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the A40i is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

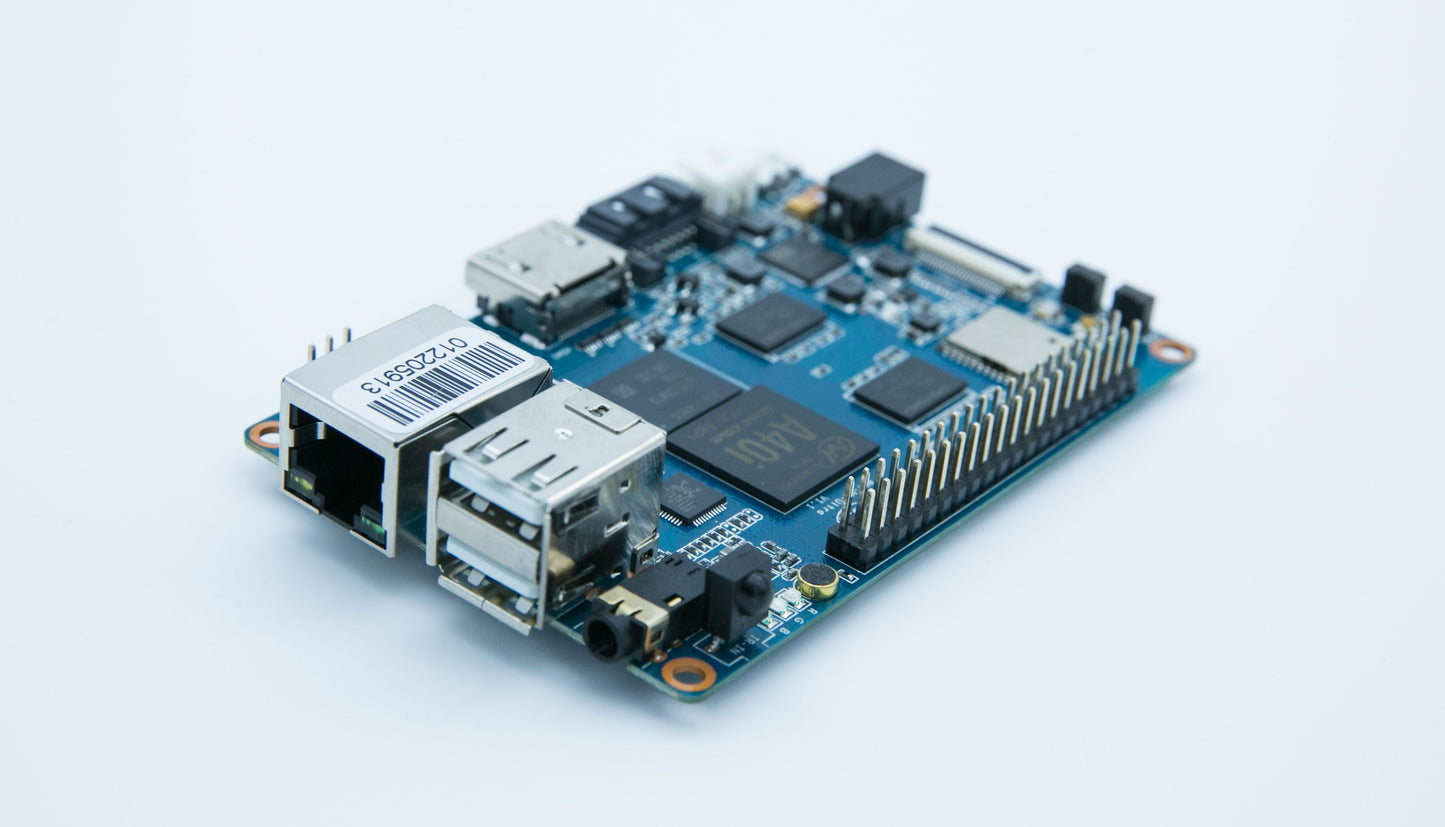

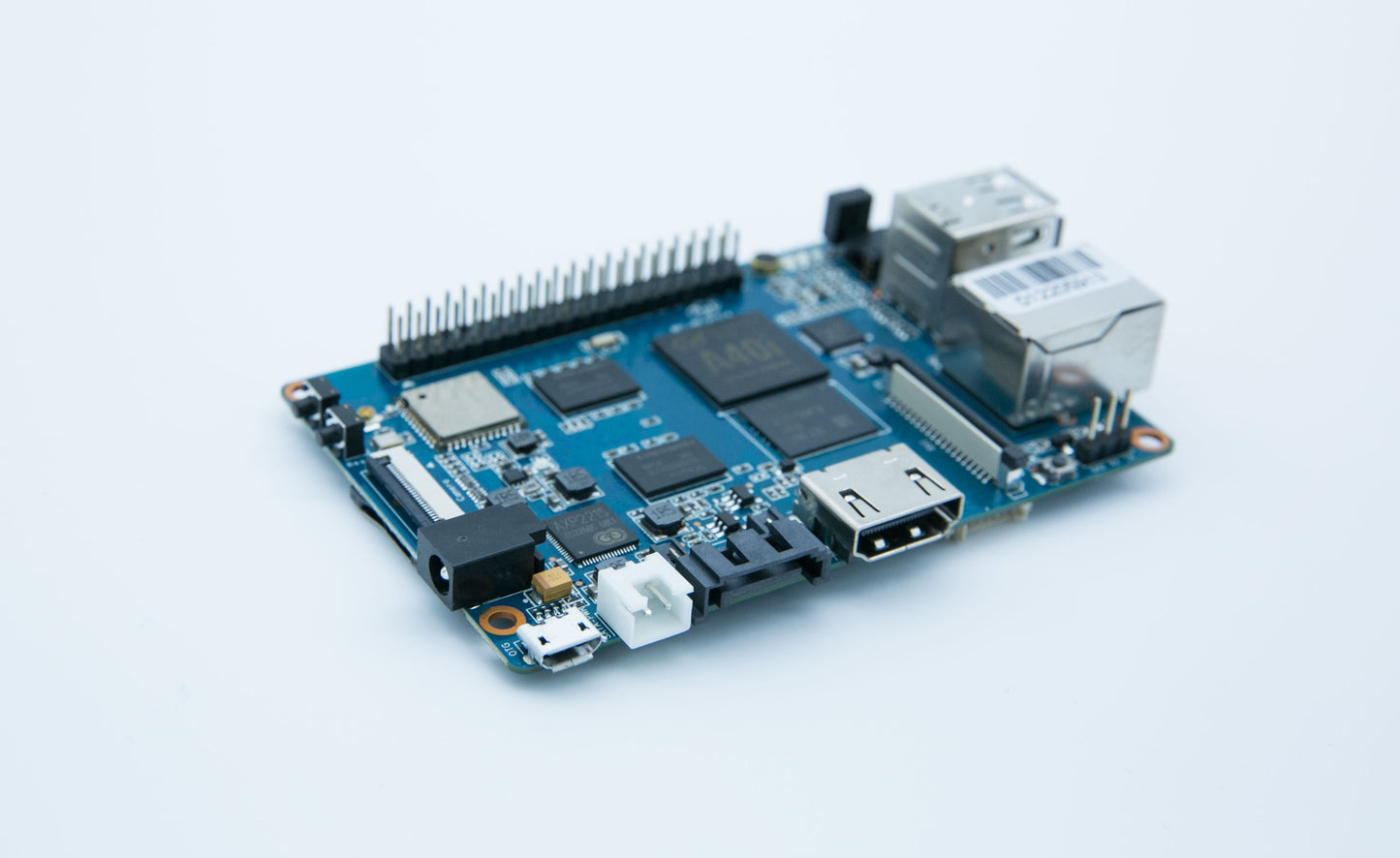

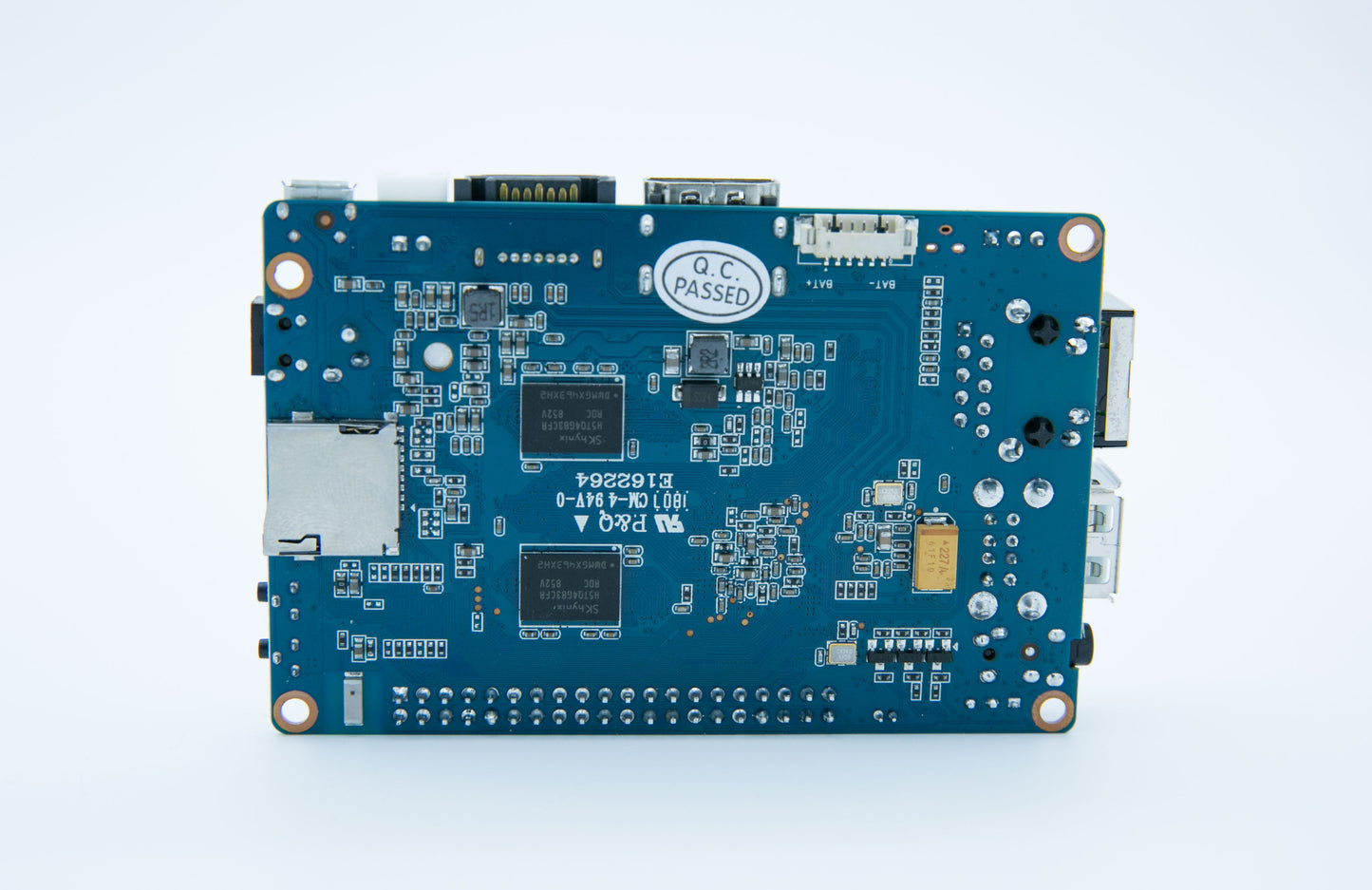

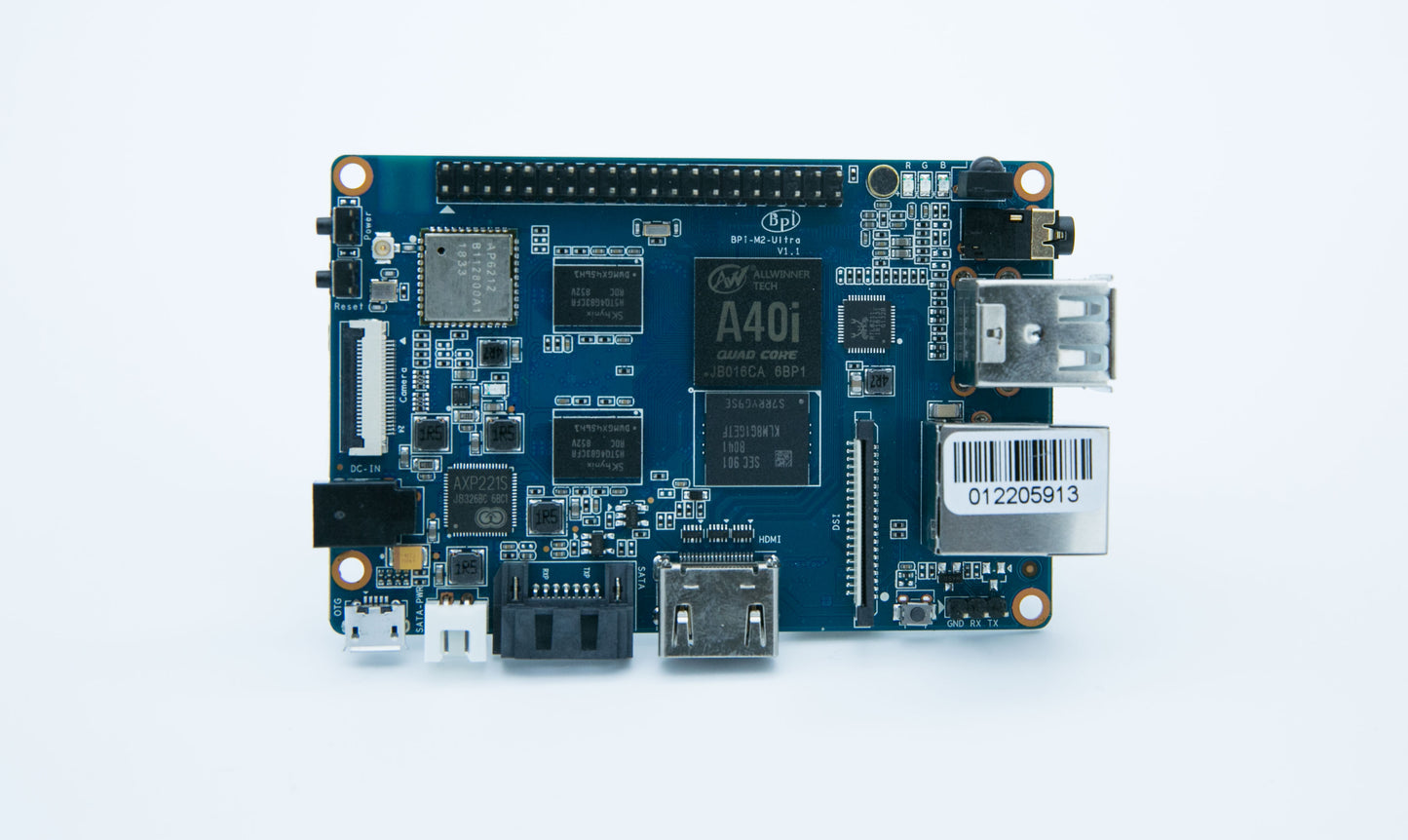

|HardWare Specification of Banana pi BPI-M2 Ultra|
|CPU||quad-core cortex -A7,the most power efficient CPU core ARM‘s ever development|
|GPU||dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode.|
|SDRAM||2 GB DDR3 with 733MHz(shared with GPU)|
|SATA||suppoort SATA interface|
|GPIO||40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.|
|On board Network||10/100/1000Mbps Ethernet (Realtek RTL8211E/D)|
|Wifi Module||WiFi 802.11 b/g/n (AP 6212 module on board)|
|On board Storage||MicroSD (TF) card,8GB eMMC onboard|
|Display||4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4|
|Video||Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition(HD)H.264 video encoder is up to 1080P@45fps|
|Audio outputs||HDMI, analog audio (via 3.5 mm TRRS jack)|
|Camera||A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps|
|Audio input||On board microphone|
|USB||2 USB 2.0 host, 1 USB 2.0 OTG|
|Buttons||Reset button, Power button, U-boot button|
|Leds||Power status Led and RJ45 Led|
|IR||onboard IR receiver|
|DC Power||5V/2A with micro USB port|
|battery||3.7V lithium battery power support|
|Sizes||85mmX56mm,same size as raspberry pi 3|
