Friendly Elec

2.8 inch Resistive Touch LCD

$9.80
$9.80
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

 Technical Support

Technical Support

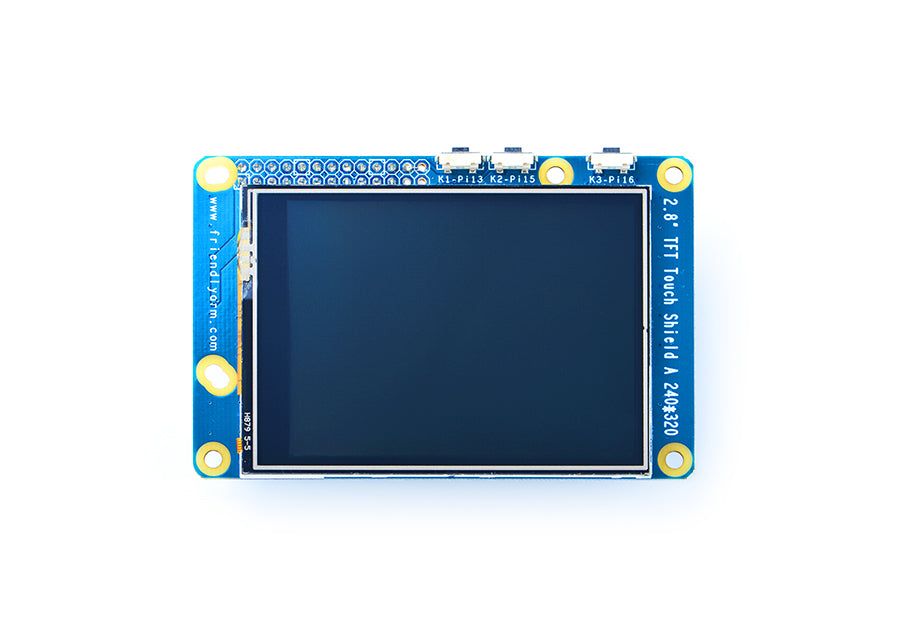

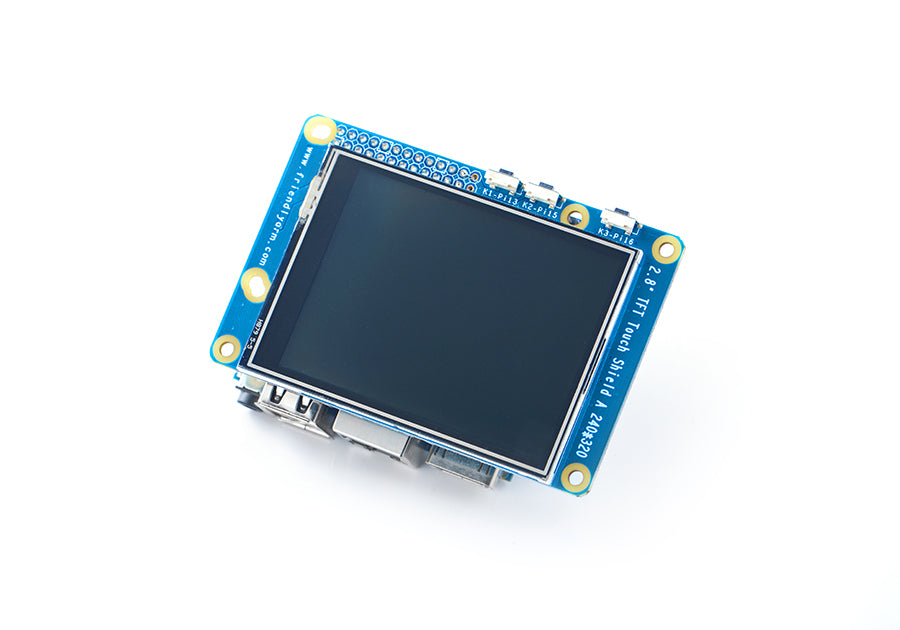

The matrix 2.8" SPI TFT LCD (Matrix-2.8_SPI_Key_TFT) is a FriendlyElec developed LCD module with resistive touch panel. Its resolution is 320 x240. Its backlight is controllable. It works with FriendlyElec's NanoPi 2. Its driver is open source.

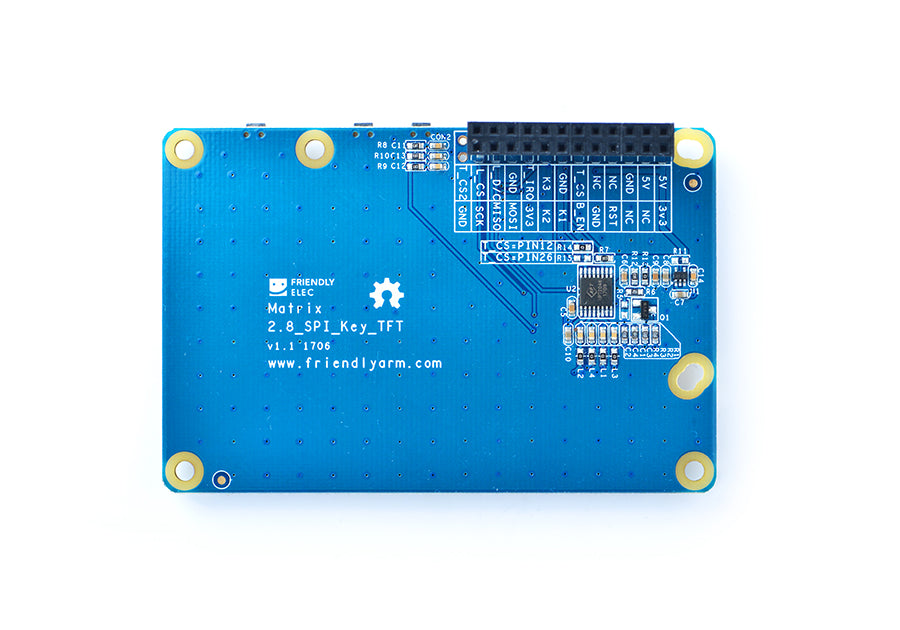

It uses STR89S IC and XPT2046 resistive touch IC. It has SPI interface and three configurable user keys.



Item

 Specifications
Display Resolution

240"RGB (H) '320(V)
Frame Memory Size

240 x 320 018bit =1,382,400 bits 2628
Display Colors(Color Mode)

262K
Display Area


Touch Panel

 Resistive Glass Touch Screen
Power dissipation 0.1W
Weight 36.61g
Operate temperature range -30 +85 C



Specifications
