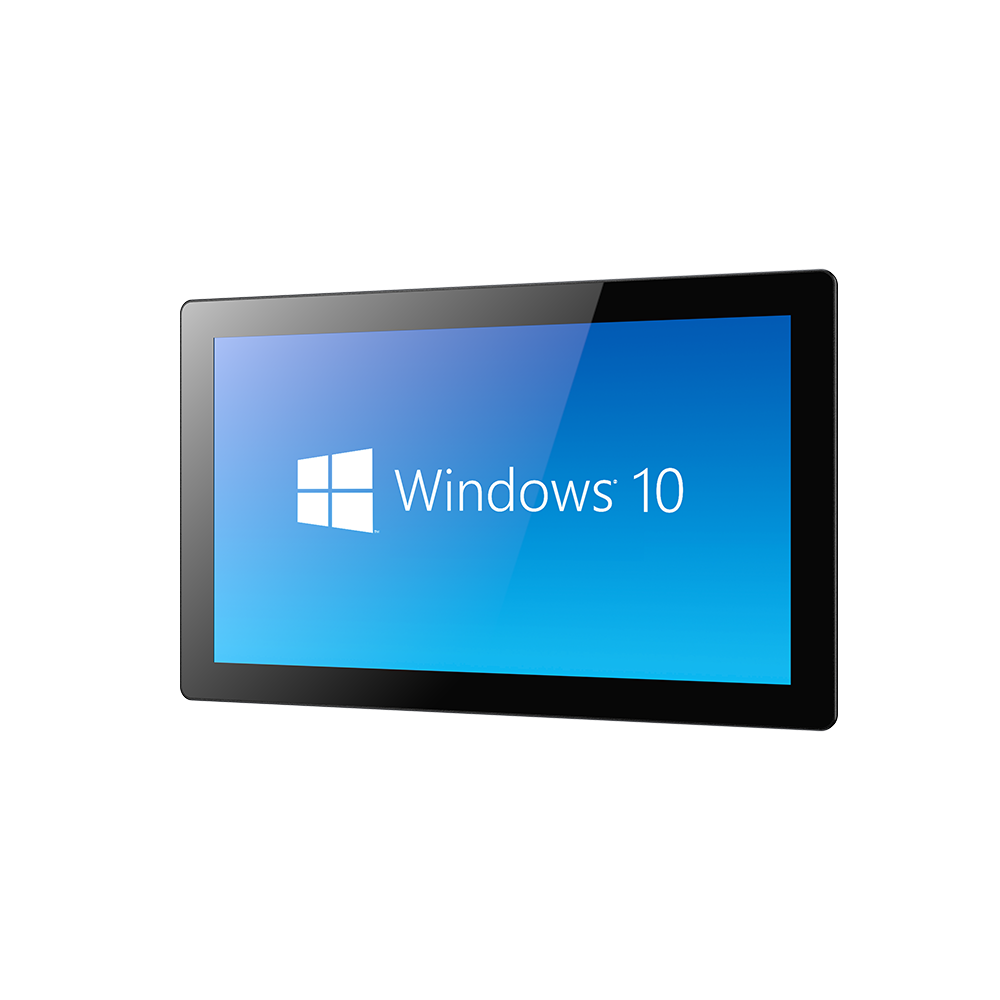

Darveen 17" DPC - 9170 Industrial Flat Panel Computer
DPC-9000 Series Intel Celeron/Core I5/I7 Processor Resistive/Capacitive Touch Panel PC 17" Screen
- 17″ LED backlight LCD, capacitive touch screen, resistive touch screen
●Fanless design, integral aluminum alloy profile heat dissipation.
●Intel Celeron/Core I5-6200U/I5-10210U /I7-8565U/I7-10610U Processor
●2 COM, 4 USB, 2 GbE, HD Audio, VGA, HDMI
●Panel and VESA mounting
DPC-9000 Series industrial embedded touch screen computer is a compact and durable human-computer interaction platform, which adopts an ultra-thin, fanless, and shockproof design. 4:3 and 16:9 resistive and capacitive touch screens can be selected to meet various industrial automation applications. DPC-9000 Series adopts Intel J1900 / i5/i7, stable system structure, and industrial application advantages. In addition, the whole series of products adopt an aluminum alloy front panel, metal body, and overall aluminum alloy profile for heat dissipation, with a firm shell and excellent heat dissipation and rust resistance.
▌Specifications
|
System |
CPU |
Intel Quad-Core Celeron J1900 (2.0GHz) |
|
Memory |
4GB SO-DIMM DDR3L-1333/1600 (Up to 8GB)（J1900） |
|
|
Storage |
1 x2.5″ Driver Bay for SATA HDD/SSD |
|
|
Operating System |
Windows 7/8.1/10 |
|
|
Display |
Size |
17" |
|
Resolution |
1920 ×1080 |
|
|
Viewing Angle |
89/89/89/89 |
|
|
Brightness |
250 cd/m² |
|
|
Backlight |
LED |
|
|
LED Lifetime |
40000 hrs |
|
|
VGA |
Up to 1920 ×1200@60Hz |
|
|
HDMI |
Up to 4096 ×2304@24Hz |
|
|
Multi-Display |
Dual display (LVDS + VGA/HDMI) |
|
|
Touch Screen |
Type |
5-Wire Analog Resistive Touch /Projected Capacitive Touch |
|
control interface |
USB |
|
|
Surface hardness |
≥3H/≥6H |
|
|

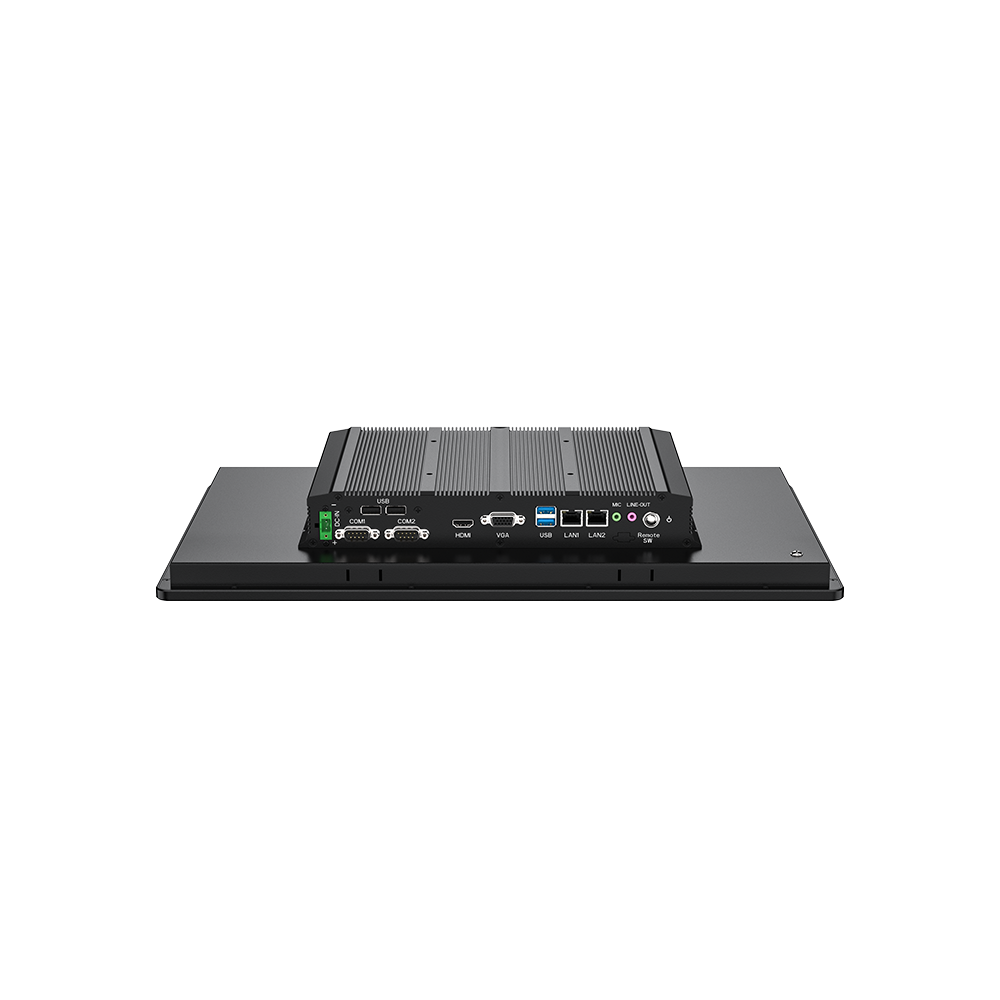

I/O |
Serial Port |
2 x RS-232 (COM1/2) |
|
USB Port |
4 x USB |
|
|
Ethernet |
2 x GbE LAN |
|
|
Display interface |
1 x HDMI ,1 x VGA |
|
|
Audio |
1 x Line-out,1 x Mic |
|
|
Others |
1 x DC-IN (2-Pin Phoenix) |
|
|
Expansion |
Mini-PCIe |
1 x Full-size Mini-PCIe for mSATA |
|
Power |
Power Input |
12V (9~36V Optional) |
|
Power Adapter |
AC-DC, 12V@5A, 60W / AC-DC, 12V@7A, 84W |
|
|
Power Consumption |
27W（Typ.）-J1900 |
|
|
Environment |
Operating Temperature |
-10~50°C |
|
Storage Temperature |
-20~60°C |
|
|
Relative Humidity |
10%-90%,@ 40 °C (non-condensing) |
|
|
Vibration |
5~500Hz, 0.026 G ²/Hz, 2.16 Grms, X,Y, Z, 1 hour per axis |
|
|
Certifications |
CE, FCC |
|
|
Physical Characteristics |
Meterial |
Aluminum alloy panel, all-metal structure |
|
Mounting Mode |
Panel-mount, VESA-mount |
|
|
Dimension (W x L x H) |
528X326X66 mm |
|
|
Weight |
7.6Kg-(J1900) |
|
|
Packing List |
Packing List |
1 x DPC-9210 |
|
1 x AC-DC Power Adapter |
||
|
1 x Certificate |
||
|
1 x Warranty Card |
||
|
8 x Panel Mounting Buckles |
