ZHICHUN

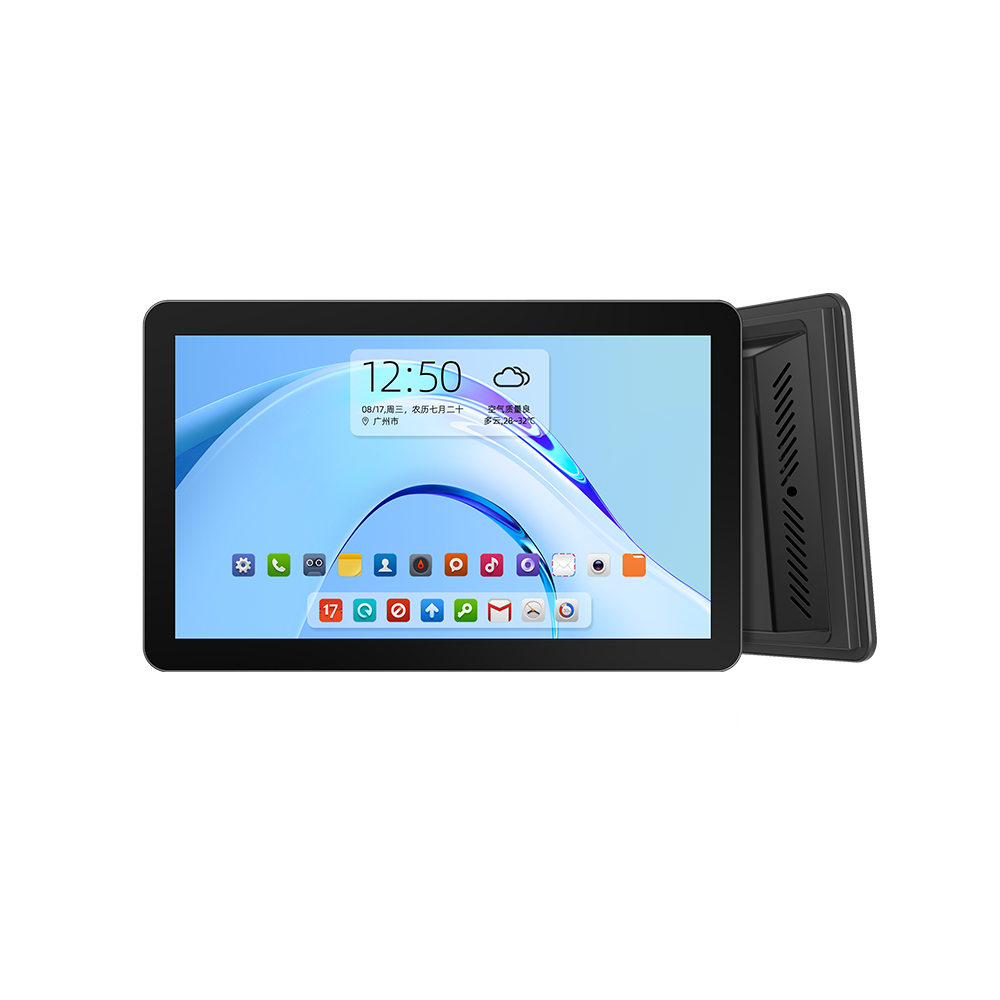

Zhichun X Series 10,1 inch All-In-One Industrial Flat Panel PC - Capacitive Touch - RK3288 CPU + 2GB RAM + 8GB eMMC For ANDROID OS

Regular price $232.42
Regular price Sale price $232.42
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

Zhichun X Series 10,1 inch All-In-One Industrial Flat Panel PC - Capacitive Touch - RK3288 CPU + 2GB RAM + 8GB eMMC For ANDROID OS



Model:ZXS-A101PPC



Zhichun X Series 10,1 inch All-In-One Industrial Flat Panel PC - Capacitive Touch - RK3288 CPU + 2GB RAM + 8GB eMMC For ANDROID OS has the main specification below:

Specification:

Parameter

Host Configuration Parameter

CPU

RK3288, Quad-core Cortex-A17,Main frequency up to 1.8GHz

GPU

Mali-T 764

RAM

DDR3 2GB (2GB/4GB optional)

eMMC

8GB (16GB/32GB/64GB optional)

USB

2*USB3.0/2.0

HDMI

1*HDMI

COM Port

2 * COM RS232 (optional)

LAN

1*RJ45 Support 100M Ethernet

AUDIO

1x HD/Audio Line Out

TF card reader

1*TF slot

Power

12V DC_IN Power Input Connector

Mobile Network

1*SIM slot,Support 3G/4G module(optional)

WIFI+BT

2.4GHz+5GHz WiFi+BT4.0(optional)

OS

Pre-installed Android 7.1

Touch Screen

Type

PCAP Touch

Respond Time

≤5ms

Luminousness

85±5%

Surface Hardness

6H

Click Lifetime

50 millions times

Anti Static Pressure

5kg/cm2

Communication Interface

USB interface

Display Screen

Type

10,1 inches

Interface

LVDS

Backlight

LED

Backlight MTBF

50000h

Resolution

1024*600

Brightness

300cd

Dynamic Contrast

1000:1

Viewing Angle

R/L:65(Typ.), U/D:65(Typ)

Environmental Parameters

Operating Temperature

 -10-+60

Storage Temperature

-20-+70

Relative Humidity

 20%-90%

General Parameters

Outline Dimension

257*176*39mm(L*W*H)

Display Dimension

218*137mm(L*W)

Hole Size

75*75mm

Shell Material

Metal Plate

Installation Type

Embedded,Wall-Mounted,Desktop,VESA



Accessories:                                              Optional Accessories:

Product Name

Specification



Product Name

Specification

Wall-Mounted Plate

1 PCS



Power Cable

3M /5M

Adapter

12V/5A



Desktop Stand

Desktop installation optional

Power Cable

1.5M







Touch Pen

1 PCS







Manual/Warranty Card

Each 1 PCS








For more information about Zhichun X Series 10,1 inch All-In-One Industrial Flat Panel PC - Capacitive Touch - RK3288 CPU + 2GB RAM + 8GB eMMC For ANDROID OS, please contact us.
