- Module No:EV101WXM-N10
- Brand:BOE
- Size:10.1 inch
- Resolution:1280*800
- Brightness:400 cd/m²
- Viewing angle:85/85/85/85
- Interface:LVDS (1 ch, 8bit) , 20 pin
- CR:900 : 1
- Operating Temp.: -20 ~ 70 °C
- Parameters
Manufacturer | BOE |
Model Name | EV101WXM-N10 |
Screen Size | 10.1 |
Pixel Number | 1280(RGB)×800, WXGA |
Active Area(mm) | 216.96(H)*135.6(V) mm (H×V) |
Outline(mm) | 228.6(H) x 149.2(V)mm (H×V×D) |
Bezel Area(mm) | |
Treatment | Haze |
Luminance | 350 cd/m² (Typ.) |
Contrast Ratio | 900 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/80(CR≥10) Left/Right/UP/Down |
Response | 10/25 (Typ.)(Tr+Td) ms |
Work Mode | ADS, Normally black, Transmissive |
Color Depth | 16.2M , 48% NTSC |
Backlight | 30K hours,without LED Driver |
Net Weight | 143g (Typ.) |
Touchscreen | without |
Signal Type/interface Type | 20 pins LVDS (1 ch, 8-bit) |
Voltage Supply | 3.3V (Typ./Max.) |
Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -30 ~80 °C |
Package |

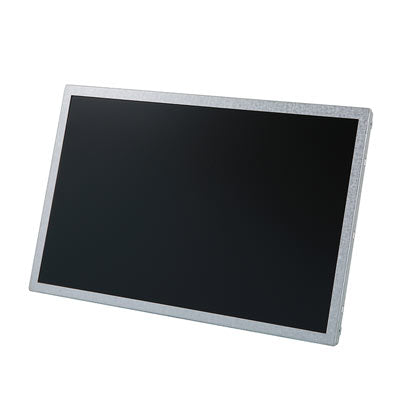

BOE 10.1 inch LCD screen EV101WXM-N10, with 400 luminance and -20-70°C operating temp.
EV101WXM-N10 has standard 1280*800 resolution, with full-view angle.
30000 hours lifetime of backlight.
Used in handheld devices and PADs.
