Friendly Elec

Matrix Thermistor module

$1.99
$1.99
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Delivery Guarantee

Delivery Guarantee

 Technical Support

Technical Support

 Matrix Thermistor

  • GM 3.3/5V
  • Small
  • 2,54 mm pitch pin-header
  • PCB Dimension(mm): 84 24

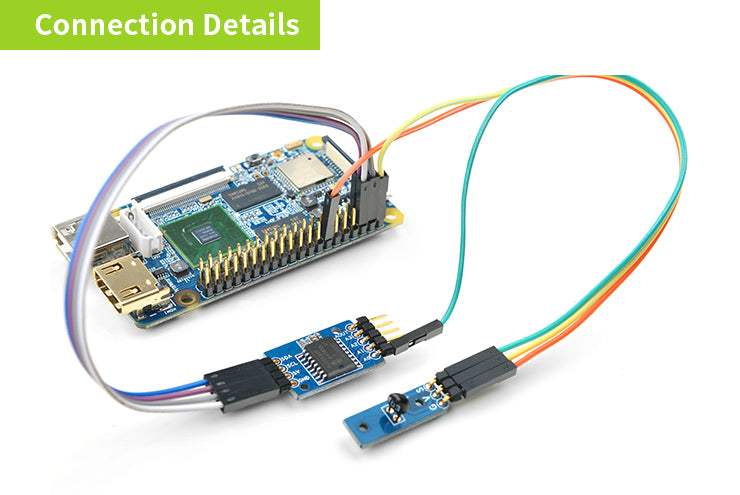

The Matrix - Thermistor module is a thermistor module. It is easy to use. You can just connect it to a master device with dupont cables. It works with all Friendl-yARM boards, Raspberry Pi boards and Arduino boards.
It has a 3 pin 2.54mm spacing pin header of which V is supply voltage, G is ground and S is output analog signal. Users can convert output analog signals to digital signals via ADC conversion.

Pin  Spec
S GPIO
V Power supply 5V
G ground

Specifications
