Friendly Elec
Matrix-Fire_Sensor module
Precio habitual
$2.99
Precio habitual
Precio de oferta
$2.99
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
Delivery Guarantee
Technical Support
No se pudo cargar la disponibilidad de retiro
Share
MATRIX Fire_Sensor
- Standard 3Pin interface
- GPIO
- 2.54 mm pitch pin-header
- PCB Dimension(mm): 16 x 24

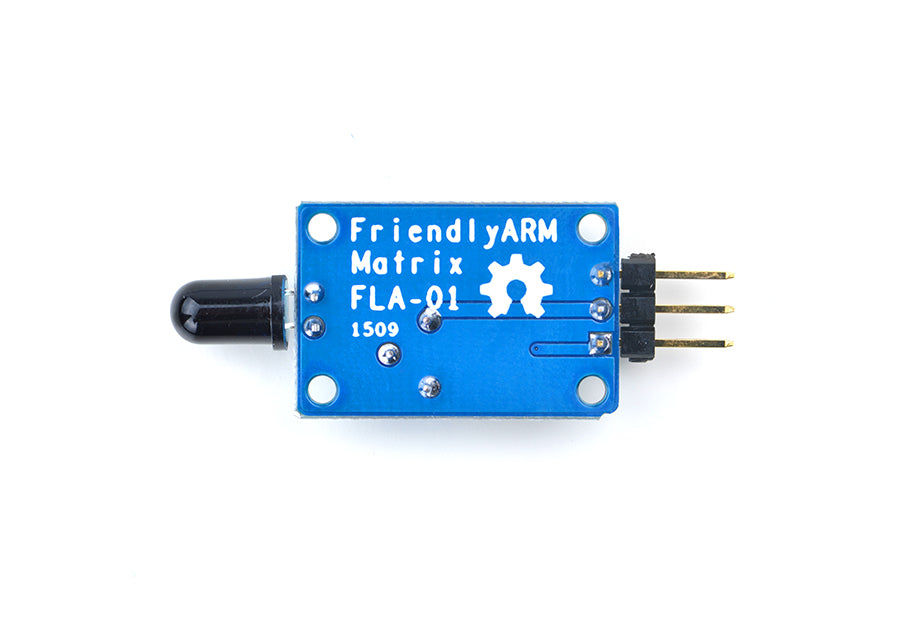

The Matrix-Fire_Sensor module is a flame detector module. It uses the YS-17 flame detector to detect flames or fires. This module can detect flames or fires whose wavelengths are between 760nm and 1100nm. Its detecting angle is up to 60 degrees. Its sensitivity can be adjusted via the potentiometer.
It works with all FriendlyARM boards, Raspberry Pi boards and Ardui no boards.
| Pin | Spec |
| S | GPIO |
| V | Power supply 5V |
| G | ground |
Specifications
