![Banana PI BPI-M2+/M2 Zero Camera Module (OV5640)](http://genovaindustrial.com/cdn/shop/products/WeChatScreenshot_20230329161813.png?v=1680096021&width=1445)
![Banana PI BPI-M2+/M2 Zero Camera Module (OV5640)](http://genovaindustrial.com/cdn/shop/products/2_15d4163d-7673-4aae-93fe-c60c40e7b489.png?v=1680096021&width=1445)
![Banana PI BPI-M2+/M2 Zero Camera Module (OV5640)](http://genovaindustrial.com/cdn/shop/products/3_6b31585e-70ea-4df5-abf3-5bf16fd1d47b.png?v=1680096021&width=1445)
Hardware Specification
The camera V3 module is specifically designed for BPi-M3.It include two CMOS sensor module, one is OV5640(5M Pixel),and the other is OV8865(8M Pixel),so you can choose one or two campera for this board.
Hardware
camera can support 2 scene. one is OV5640 and one is OV8865
Hardware interface
cable line
Schematic diagram
How to use
Connect the camera module and BPi-M3 with a 40PIN FFC cable, like the pictures below :

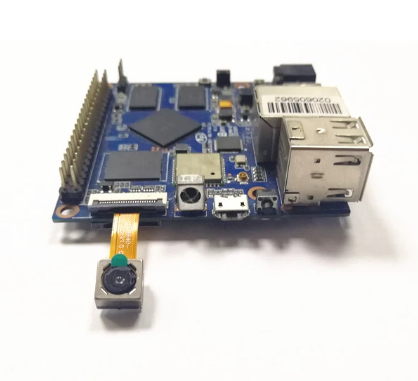

BPI-M2+ support OV5640 camera module
note: for BPI-M2+ , camera is not same as BPI-M2,BPI-M1.... , it support OV5640 module, not need extend board. you just can direct use OV5640 modue on CSI interface.
if you have BPI-M1/M1+/M2 camera module ,you can remove camera module from extend bard ,and can use on BPI-M2+.
connect way:
Specifications
