BANANA PI

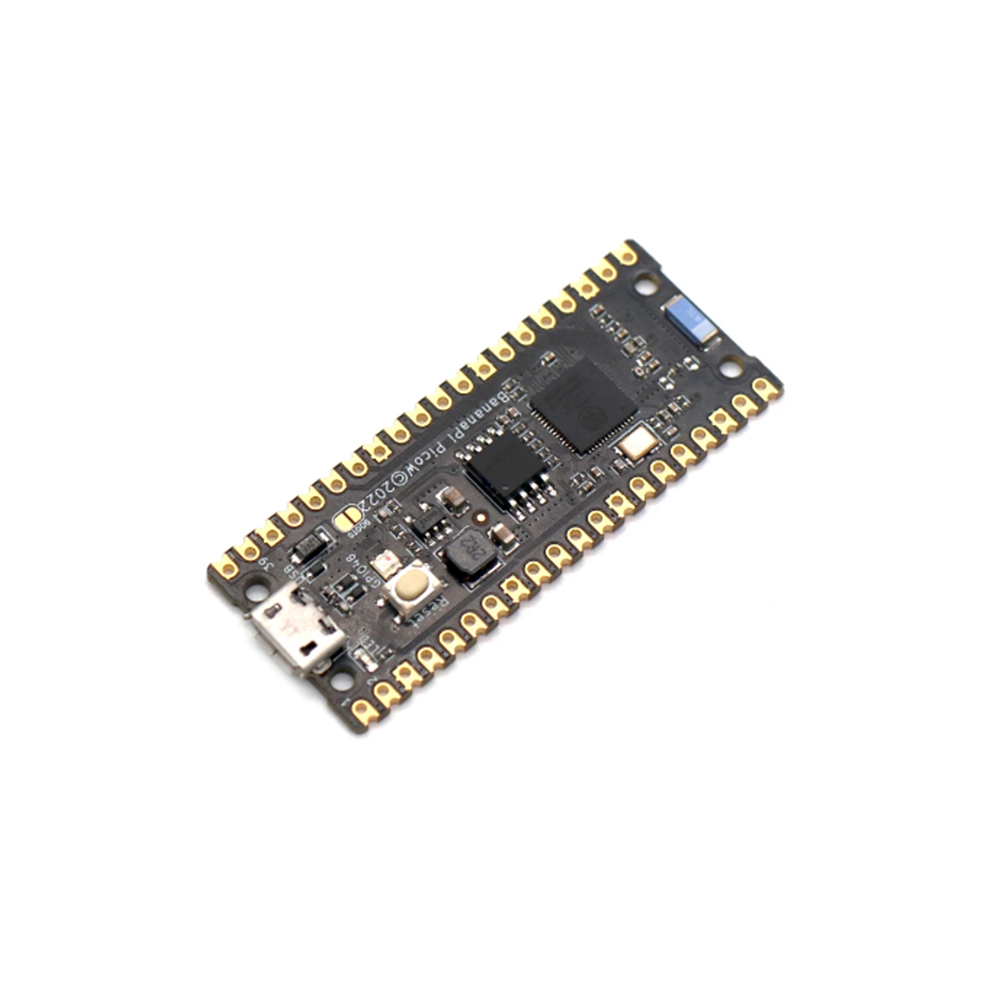

BananaPi BPI-PicoW-S3 Board

Regular price $6.00 USD
Regular price Sale price $6.00 USD
Sale Sold out

BananaPi BPI-PicoW-S3 Board



  • ESP32-S3, Xtensa® 32 bit LX7
  • External PSRAM, FLASH
  • Ultra-low power 10uA
  • 2.4G WIFI, Bluetooth 5, Bluetooth mesh
  • GPIO, ADC, TOUCH, PWM, I2C, SPI, RMT, I2S, UART, LCD, CAMERA, USB, JTAG
  • 1*microUSB
  • 1*Full color LED



Banana Pi BPI-PicoW-S3 is a series of low-powered microcontrollers designed for IoT development and Maker DIY board.It desige with ESP32-S3 chip,supports 2.4 GHz Wi-Fi and Bluetooth® LE dual-mode wireless communication, the peripheral is compatible with low-power hardware design, and the power consumption is only 10uA in deep sleep mode.In terms of programming, the BPI-PicoW-S3 supports ESP-IDF, Arduino, micropython and other methods.

Same size as Raspberry Pi pico, And most GPIO definitions are compatible with raspberry Pi Pico

Hardware interface:




Hardware spec:




SoC
ESP32-S3, Xtensa® 32-bit LX7 dual core
Basic frequency 240MHz MAX
Operating temperature -40℃~+85℃
On-chip ROM 384KB
On-chip SRAM 320KB
Onboard FLASH ROM 2MB
On-chip peripheral PSRAM 8MB
WIFI IEEE 802.11 b/g/n, 2.4Ghz band, 150Mbps
Bluetooth Bluetooth 5, Bluetooth mesh
GPIO BPI-PicoW-S3 has led out 27 available GPIOs
ADC 2 × 12-bit SAR ADC supporting 18 analog channel inputs
TOUCH Capacitive Touch Sensor 14
SPI 4
I2C 2. Support master or slave mode
I2S 2, input and output of serial stereo data
LCD 1, support 8-bit ~16-bit parallel RGB, I8080, MOTO6800 interface
CAMERA 1, supports 8-bit ~16-bit DVP image sensor interface
UART 3, supports asynchronous communication (RS232 and RS485) and IrDA
PWM 8 independent channels, 14-bit precision
MCPWM 2
USB 1 × Full Speed ​​USB 2.0 OTG, MicroUSB Female
USB Serial/JTAG Controller 1, USB full speed standard, CDC-ACM, JTAG
Temperature sensor 1, the measurement range is –20 °C to 110 °C, for monitoring the internal temperature of the chip
SD/MMC 1 × SDIO host interface, with 2 card slots, supports SD card 3.0 and 3.01, SDIO 3.0, CE-ATA 1.1, MMC 4.41, eMMC 4.5 and 4.51
TWAI® Controller 1, compatible with ISO11898-1 (CAN specification 2.0)
Generic DMA Controller 5 receive channels and 5 transmit channels
RMT 4-channel transmit, 4-channel receive, shared 384 x 32-bit RAM
Pulse Counter 4 pulse count controllers (units), each unit has 2 independent channels
Timer 4 × 54-bit general-purpose timers, 16-bit clock prescaler, 1 × 52-bit system timer, 3 × watchdog timers
External crystal 40Mhz
RTC and Low Power Management Power Management Unit (PMU) + Ultra Low Power Coprocessor (ULP)
Low power consumption current 10uA
Working Voltage 3.3V
Input voltage 3.3V~5.5V
Maximum discharge current 2A@3.3V DC/DC
Controllable full color LED 1



For more information about BananaPi BPI-PicoW-S3 Board, please concact us.
