Friendly Elec NanoPi R6C Development Board

Regular price $101.75
Regular price Sale price $101.75
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

Friendly Elec Nano Pi R6C Development Board


NanoPi R6C is an open-sourced mini IoT gateway device with one 2.5G and one Gbps Ethernet ports, designed and developed by Friendly Elec.

NanoPi R6C is integrated with a Rockchip RK3588S CPU, 4GB/8GB LPDDR4x RAM, and 32GB eMMC flash or none. It supports booting with TF cards and works with operating systems such as FriendlyWrt, Android, Debian, Ubuntu etc and works with headless systems as well.

NanoPi R6C has rich hardware resources with a compact size of 90 x 62 mm, a 30-pin header is provided to expose hardware resources for secondary development, including interfaces such as GPIO, I2C, I2S, PWM and SPI, It alsa has one HDMI port. It supports decoding 8K@60fps H.265/VP9 and 8K@30fps H.264 formatted videos.

NanoPi R6C has one M.2 NVME port and two USB ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos. FriendlyElec has released a carefully-designed custom CNC housing for it.

All in all, NanoPi R6C is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers

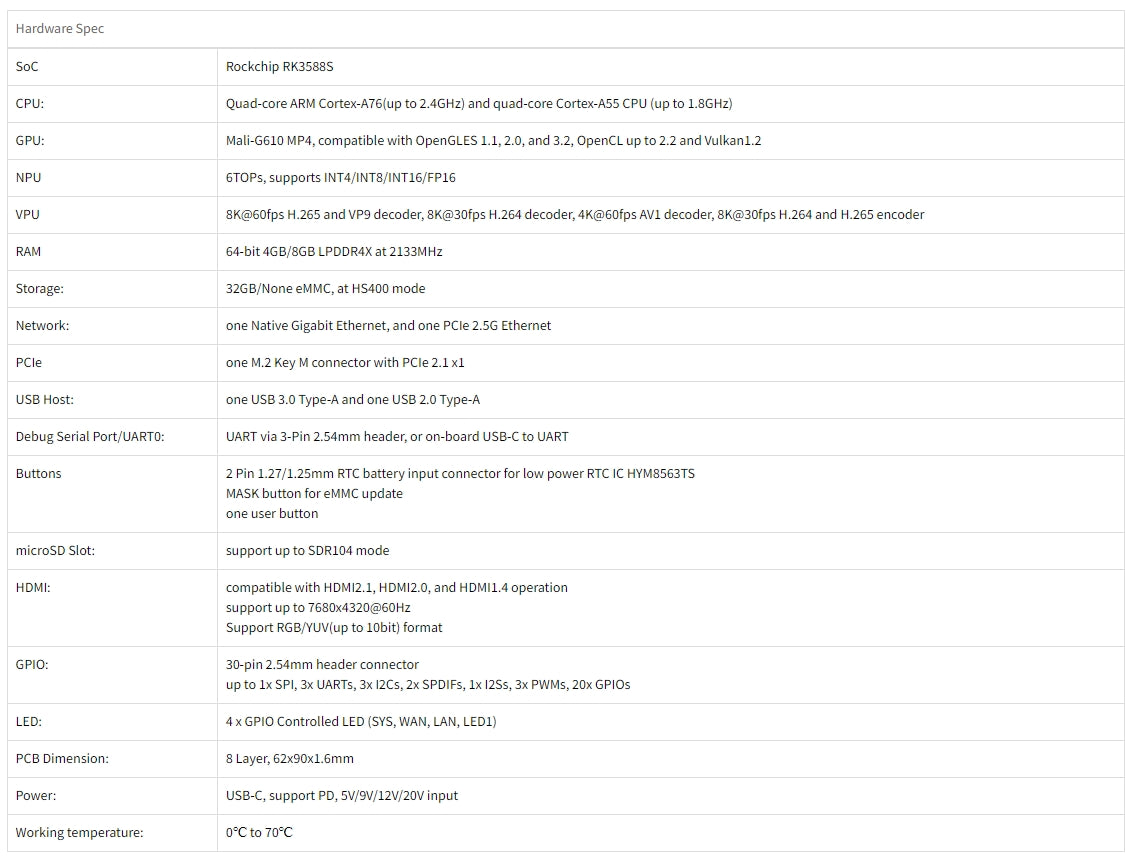

Hardware Spec
SoC Rockchip RK3588S
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
NPU 6TOPs, supports INT4/INT8/INT16/FP16
VPU 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
RAM 64-bit 4GB/8GB LPDDR4X at 2133MHz
Storage: 32GB/None eMMC, at HS400 mode
Network: one Native Gigabit Ethernet, and one PCIe 2.5G Ethernet
PCIe one M.2 Key M connector with PCIe 2.1 x1
USB Host: one USB 3.0 Type-A and one USB 2.0 Type-A
Debug Serial Port/UART0: UART via 3-Pin 2.54mm header, or on-board USB-C to UART
Buttons 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
MASK button for eMMC update
one user button
microSD Slot: support up to SDR104 mode
HDMI: compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
support up to 7680x4320@60Hz
Support RGB/YUV(up to 10bit) format
GPIO: 30-pin 2.54mm header connector
up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs
LED: 4 x GPIO Controlled LED (SYS, WAN, LAN, LED1)
PCB Dimension: 8 Layer, 62x90x1.6mm
Power: USB-C, support PD, 5V/9V/12V/20V input
Working temperature: 0℃ to 70℃


OS Support FriendlyWrt 21.02
FriendlyWrt 22.03
Android 12 Tablet
Android 12 TV
FriendlyCore Lite 20.04
Debian 10 Desktop
Debian 11 Desktop
Ubuntu 22.04 Desktop
Kernel version Linux-5.10-LTS
U-boot-2017.09


PCB 8 Layer
Weight 53.1g(without Case) / 260g(with Case)
Dimension 62x90x1.6mm mm(without Case) / 68x94.5x30mm mm(with Case)
