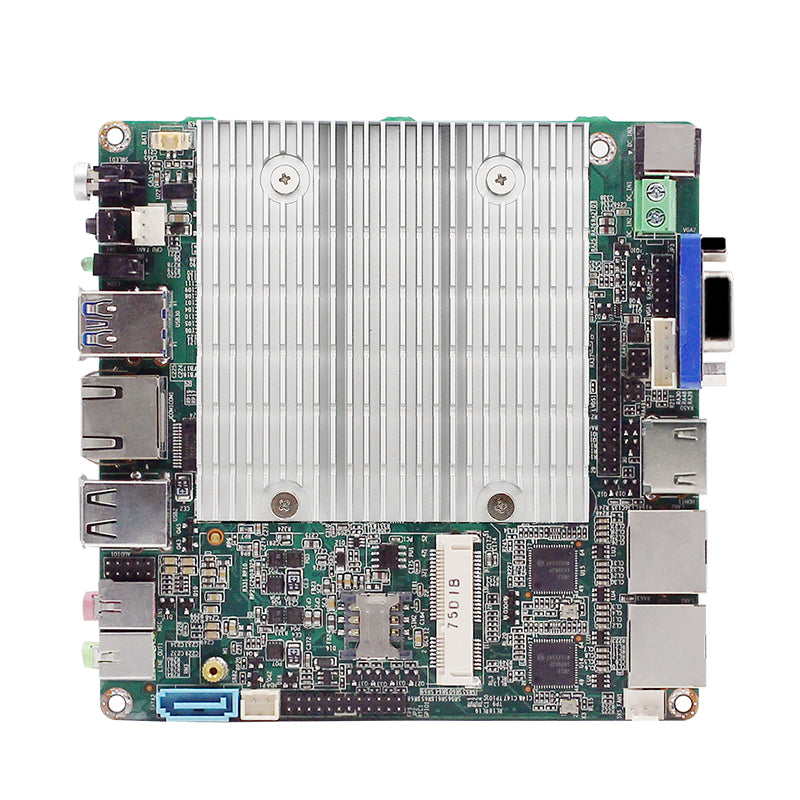

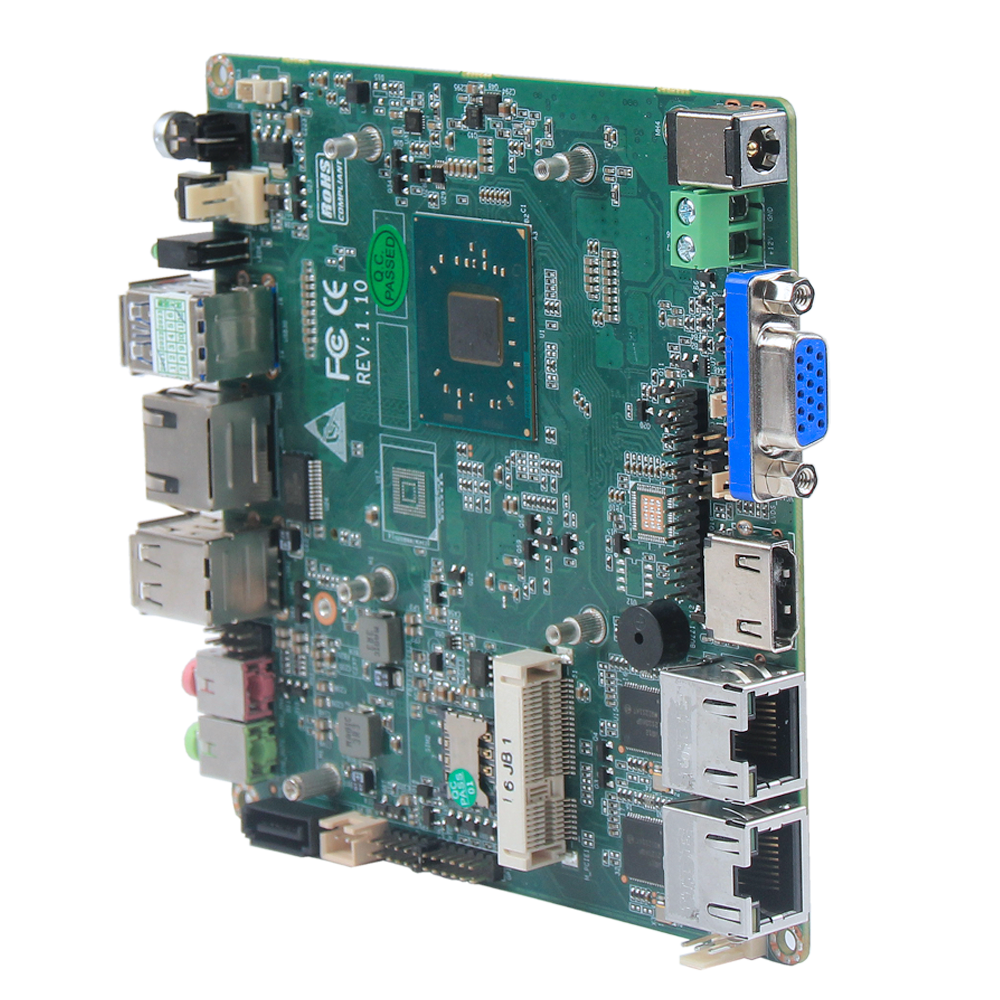

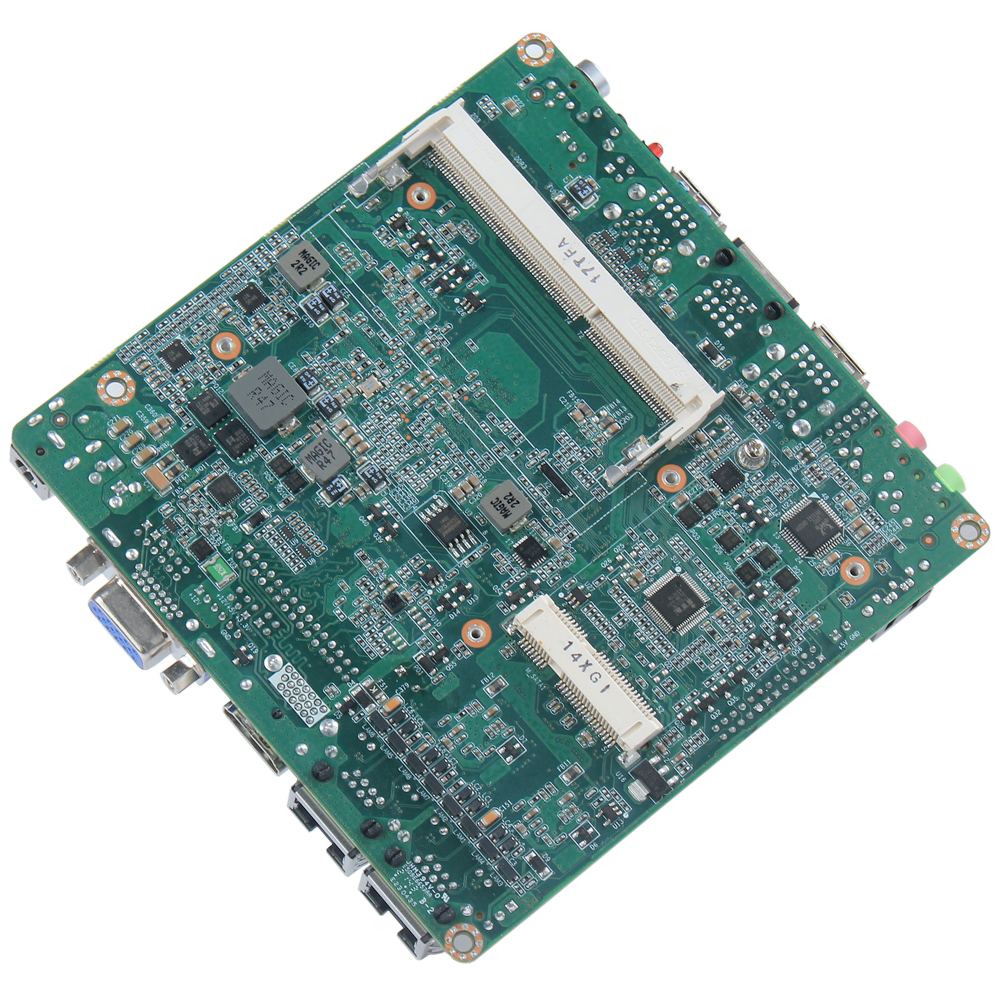

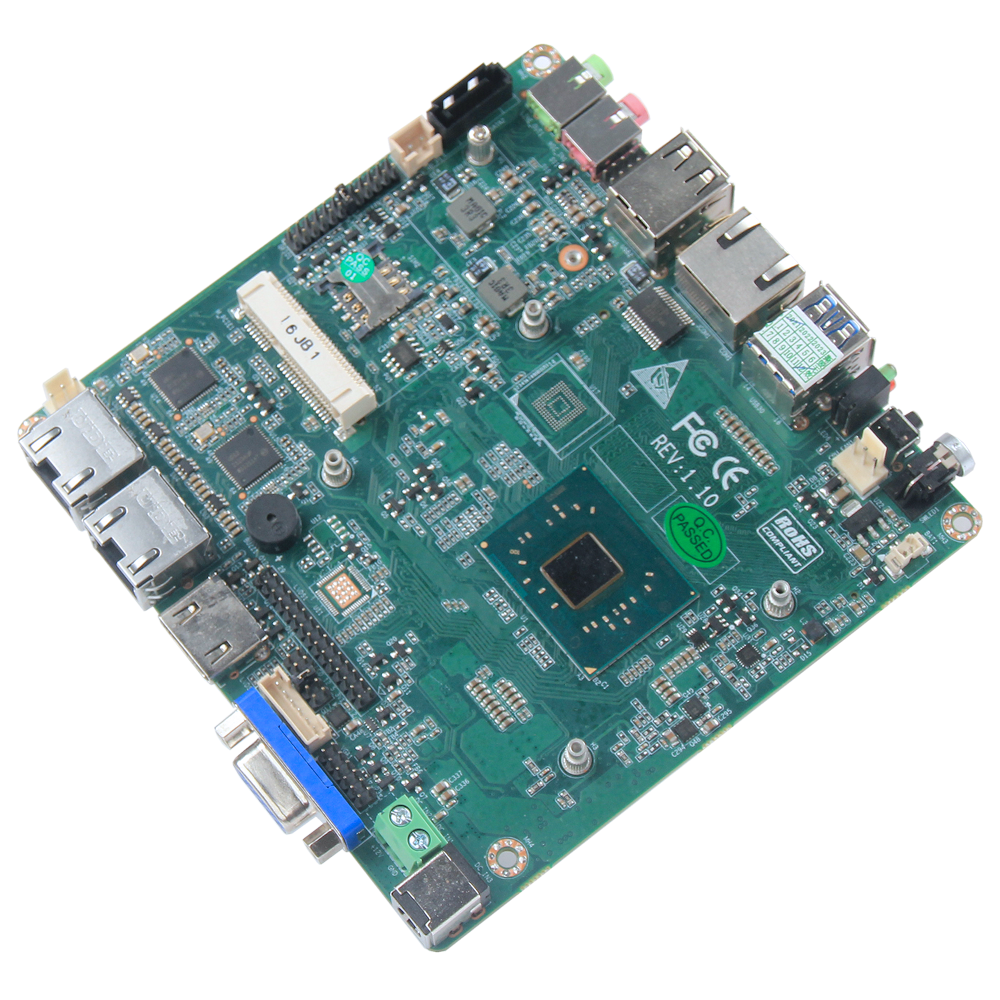

PIESIA AP42NC Intel Apollo Lake Series NANO ITX MOTHERBOARDS

Regular price $77.00
Regular price Sale price $77.00
Sale Sold out
Shipping calculated at checkout.
Delivery Guarantee

Delivery Guarantee

Technical Support

Technical Support

PIESIA AP42NC Intel Apollo Lake Series NANO ITX MOTHERBOARDS



FEATURES:

PIESIA AP42NC NANO ITX MOTHERBOARDS has the main features below:

  • Onboard Intel Apollo Lake series processor
  • 1 DDR3L SODIMM, up to 8GB
  • 4/VGA/24-bit LVDS display
  • 2 I226 5G networks; 1 RS232/RS485 optional
  • On-board eMMC memory chip (optional)
  • DC 12-19V
  • Size: 120x120mm

 SPECIFICATION:

PIESIA AP42NC NANO ITX MOTHERBOARDS has the main specification below:



Processor

Onboard Intel Apollo Lake series processor, N3450/J3455/E3940

EFI BIOS

Memory

One DDR3L 1866MHz SODIMM, supporting up to 8GB





Display

1 VGA, supporting maximum resolution 1920x1200

1 HDMI1.4, maximum resolution 4096x2304@60HZ , support 4K display

24-bit LVDS display, 1920x1200; EDP,3840x2160; Either LVDS/EDP

Support dual display, triple display, synchronous or asynchronous display



Storage

1 SATA3, 2Pin 5V power supply

1 mSATA

On-board eMMC, optional 32GB/64GB/128GB

Network

2 Intel i225V 2.5G networks









Board side I/O interface

1 VGA, 1 HDMI1.4

2 RJ45

2 USB3.0 (total LAY row of pins), 2 USB2.0 (total LAY row of pins)

1 RS232 (RJ45 interface, a total of LAY pins, RS485 optional)

1 Mic in, 1 Line out

1 power-on button, 1 reset button

1 DC JACK





In-board                           expansion function/interface

0-255 seconds, providing watchdog routine

Aluminum fanless radiator (reserved fan interface on the main board can support automatic and manual fan speed adjustment)

8-bit GPIO, 2x5Pin, spacing 2.0mm

1 MiniPCIE slot, device supporting PCIe and USB2.0 protocols

Power supply

DC 12-19V





Work environment

Working temperature: - 20 ℃~+60 ℃; Working humidity: 0%~90% relative humidity, no condensation

Storage temperature: - 40 ℃~+85 ℃; Storage humidity: 0%~90% relative humidity, no condensation

Operating system support

Windows10,Linux

Size

120x120mm

Model

Optional field

Optional description



AP42NC

Onboard Intel Apollo Lake series processor

N3450/J3455/E3940

LVDS

LVDS/EDP optional

Serial port

RS232/RS485 optional

On-board storage eMMC

Optional 32GB/64GB/128GB


For more information about PIESIA AP42NC NANO ITX MOTHERBOARDS, please contact us
