Friendly Elec NanoPi R1S Development Board MOQ 500pcs

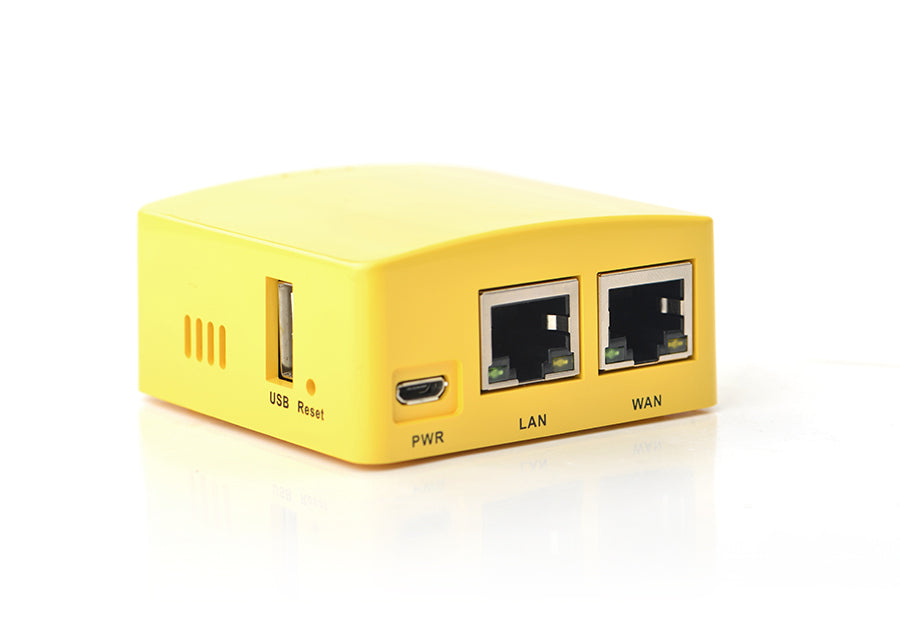

The NanoPi R1S is an open source loT ARM board  based on Allwinner Quad-core A7 SoC H3. Both models have 512M DDR3 RAM, two Gbps Ethernet ports, an onboard 2.4G Wi-Fi module and etc. Both boot from a TF card. Both models' USB can be extended to connect a 4G module or works with a USB camera.

FriendlyElec ported an OpenWrt system for the NanoPi R1S and provides a Build System for compilation and customization. By applying some simple configurations it will work as a router. Users can easily put add-on features to it and use it in WAN-dialing applications, game acceleration, personal NAS applications, remote control, smart home gateways, DIY projects and etc.

Besides FriendlyWRT the NanoPi R1S works with Ubuntu Core and Armbian as well.
By applying some simple configurations it will work as a router.

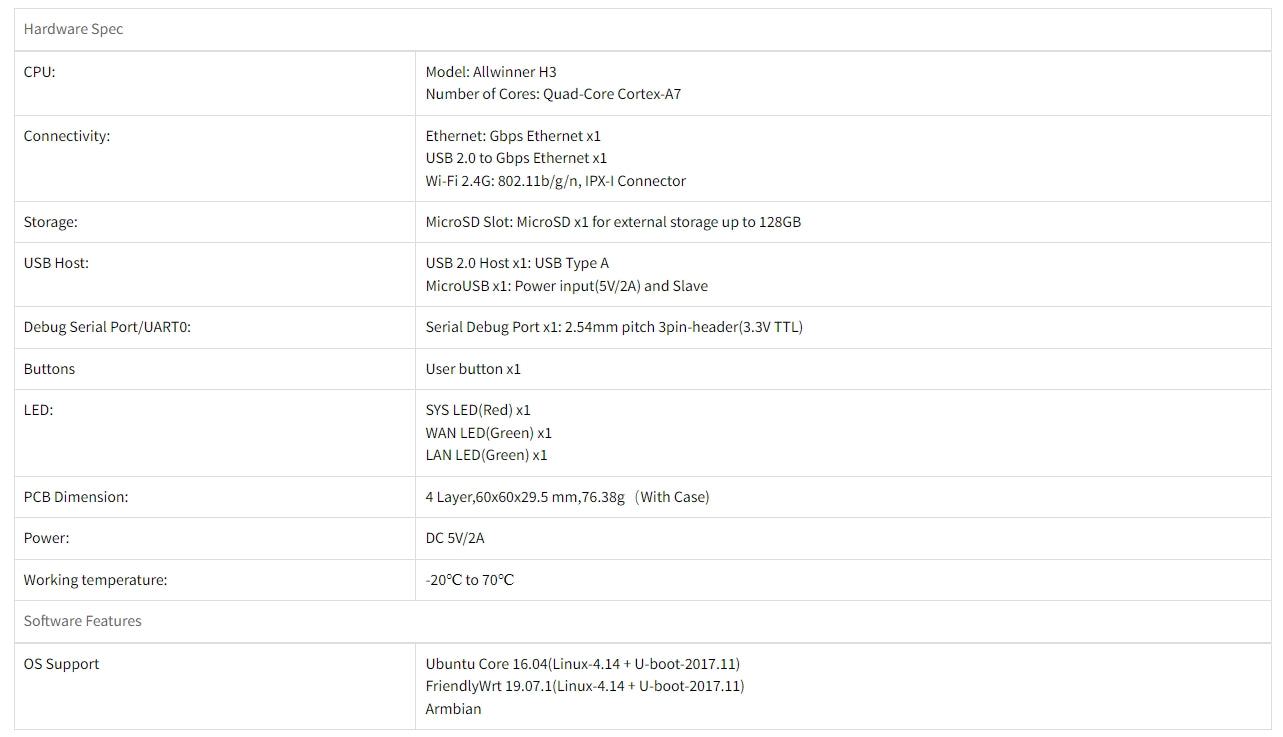

CPU

Model: Allwinner H3
Number of Cores: Quad-Core Cortex-A7

Memory 512MB DDR3 RAM
Storage
  • MicroSD Slot: MicroSD x1 for external storage up to 128GB
Connectivity
  • Ethernet: Gbps Ethernet x1
  • USB 2.0 to Gbps Ethernet x1
  • Wi-Fi 2.4G: 802.11b/g/n, IPX-I Connector
    Pin-header
    • Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)
    OS/Software
    Support
    • FriendlyCore Focal (Base on Ubuntu 20.04)
    • Ubuntu Core 16.04(Linux-4.14 + U-boot-2017.11)
    • FriendlyWrt 19.07.1(Linux-4.14 + U-boot-2017.11)
    • Armbian
    USB
    • USB 2.0 Host x1: USB Type A
    • MicroUSB x1: Power input(5V/2A) and Slave

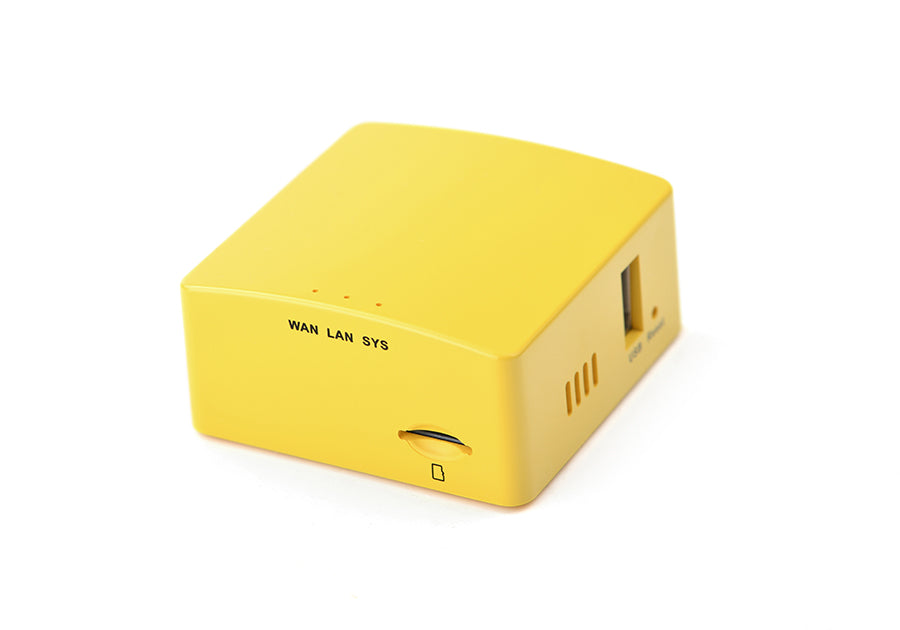

      LED & Key
      • SYS LED(Red) x1
      • WAN LED(Green) x1
      • LAN LED(Green) x1
      • User button x1
      Power
      • DC 5V/2A
      Dimensions
      • PCB: 60x60x29.5 mm, 4-Layer
      • -20℃ to 70℃


      Verified Rate:

      TX

      RX

      WAN

      672 Mbps

      930 Mbps

      LAN

      320 Mbps

      334 Mbps

      WiFi-2.4G

      84 Mbps

      76.6 Mbps

      Notes:

      1. test utility:iperf
      2. use indepedent IP address section and test with a PC in simplex communication mode
