Friendly Elec NanoPi Neo3 LTS



This compact, high-performance single-board computer (SBC) exemplifies the perfect blend of FriendlyELEC's innovation and Genova Industrial Products' steadfast dedication to quality.

The NanoPi NEO3 is a newly released super tiny ARM board by FriendlyElec. It uses Rockchip' s 64-bit quad-core SoC RK3328 (ARM Cortex-A53).

It has 1GB/2GB 32-bit DDR4 RAM. A UbuntuCore and Friendlywrt image files are ready for it.lt has one Gbps Ethernet with a unique MAC address, one USB 3.0 Type A port, two 2.54mm USB 2.0 pinheaders, one MicroSD card slot and various GPIO pins.

These features make it especially suitable for applications that require high data throughput , speedy data transmission and high performance. Hobbyists and makers will just love it.

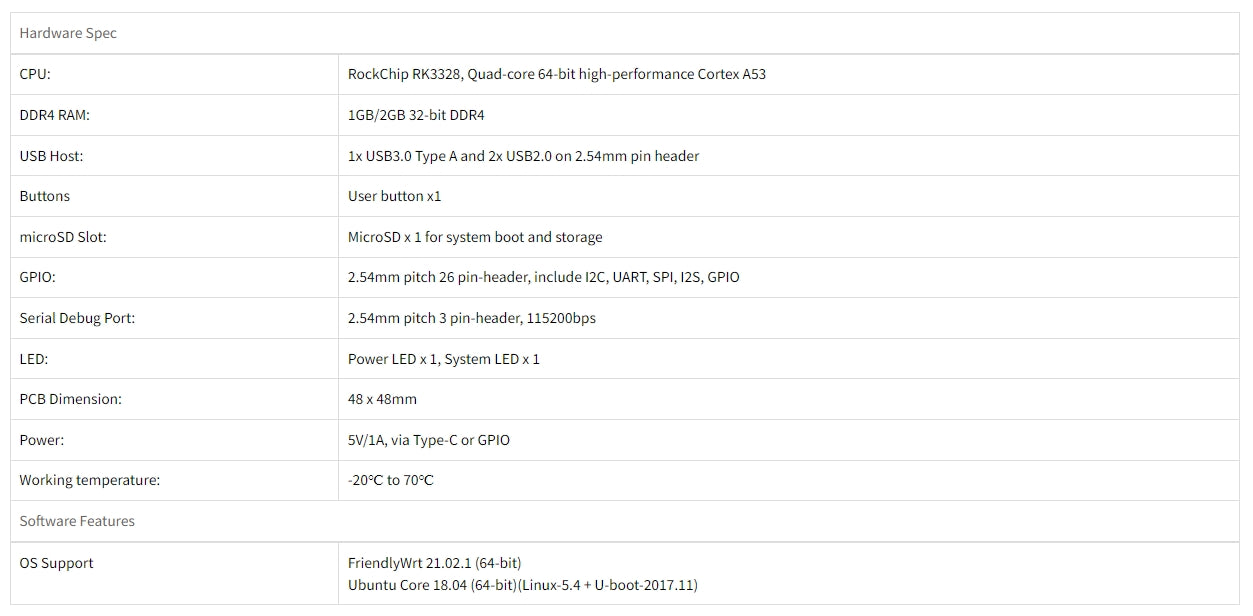

CPU

Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53 64-bit
Frequency: 4 x Cortex-A53 Up to 1.3GHz

Memory 1GB/2GB 32-bit DDR4
Storage
  • MicroSD Slot: MicroSD x1 for external storage up to 128GB
Connectivity
  • Ethernet: Gbps Ethernet x1 with unique MAC
Pin-header
  • GPIO: 2.54mm pitch 26pin-header, include I2C, UART, SPI, I2S, GPIO
  • Serial Debug Port x1: 2.54mm pitch 3pin-header, 115200bps
OS/Software
Support
  • FriendlyWrt 21.02.1 (64-bit)
  • FriendlyCore Focal Lite (Base on Ubuntu 20.04)
USB
  • USB 3.0 Host x1: USB Type A
  • USB 2.0 Host x2: 2.54mm 4x2pin-header
  • Type-C x1: Power Input Only
    LED & Key
    • PWR LED(Red) x1
    • STAT LED(Green) x1
    • User button x1
    Power
    • 5V/1A, via Type-C or GPIO
    Dimensions
    • PCB: 48x48mm, 6-Layer
    • -20℃ to 70℃
    • Certification FCC and CE
